In this article, we will show you how to set up and test the CAP Alert app in OptiSigns.

What You'll Need
How to Set Up a CAP Alert App
- Theme Settings
- Advanced Settings
How to Test Your CAP Alert

Some Emergency Alert Systems or Emergency Mass Notification Systems (like Everbridge, RAVE. and Alertus) can push CAP (Common Alerting Protocol) and Integrated Public Alert and Warning System (IPAWS) messages to the targets including digital signage when there is an emergency. You can integrate with these systems using the CAP Alert app with OptiSigns.

Using OptiSigns' CAP Alert app, you can generate a webhook and integrate it with the Emergency Alert System. When there is an emergency, the emergency alert system will call the webhook to send the CAP/IPAWS message and trigger the CAP alert app. The CAP/IPAWS alert will take over the target screens and display the emergency message. The screen will resume and play the original content when the emergency is over.

example of CAP alert with emergency text

What You'll Need

An OptiSigns account - Pro Plus Plan or higher
An Emergency Alert Feed
An OptiSigns-enabled device
A screen, set up and paired with OptiSigns

How to Set Up a CAP Alert App

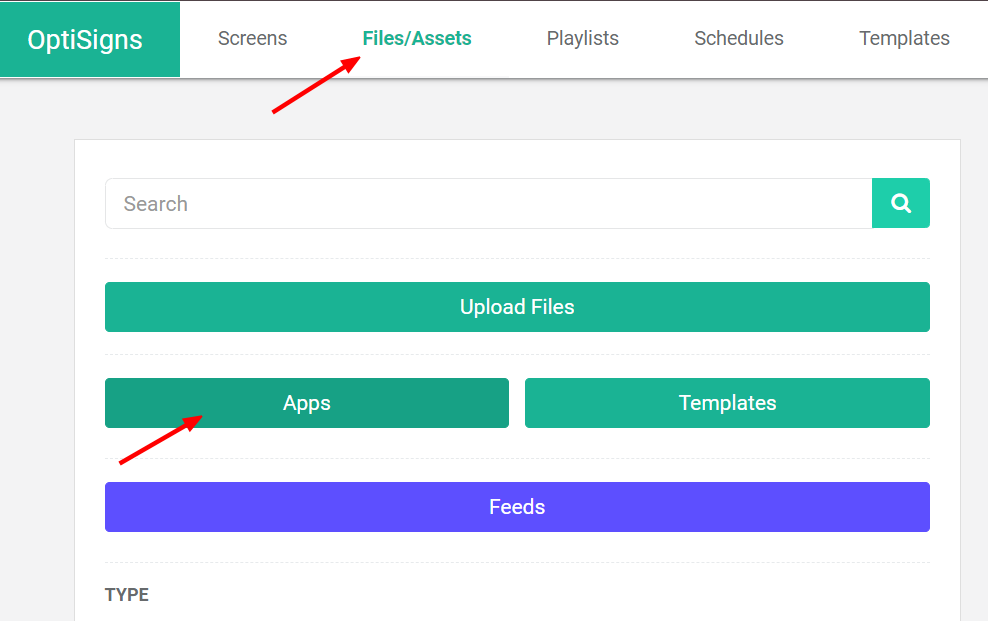

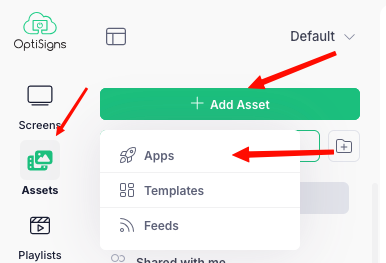

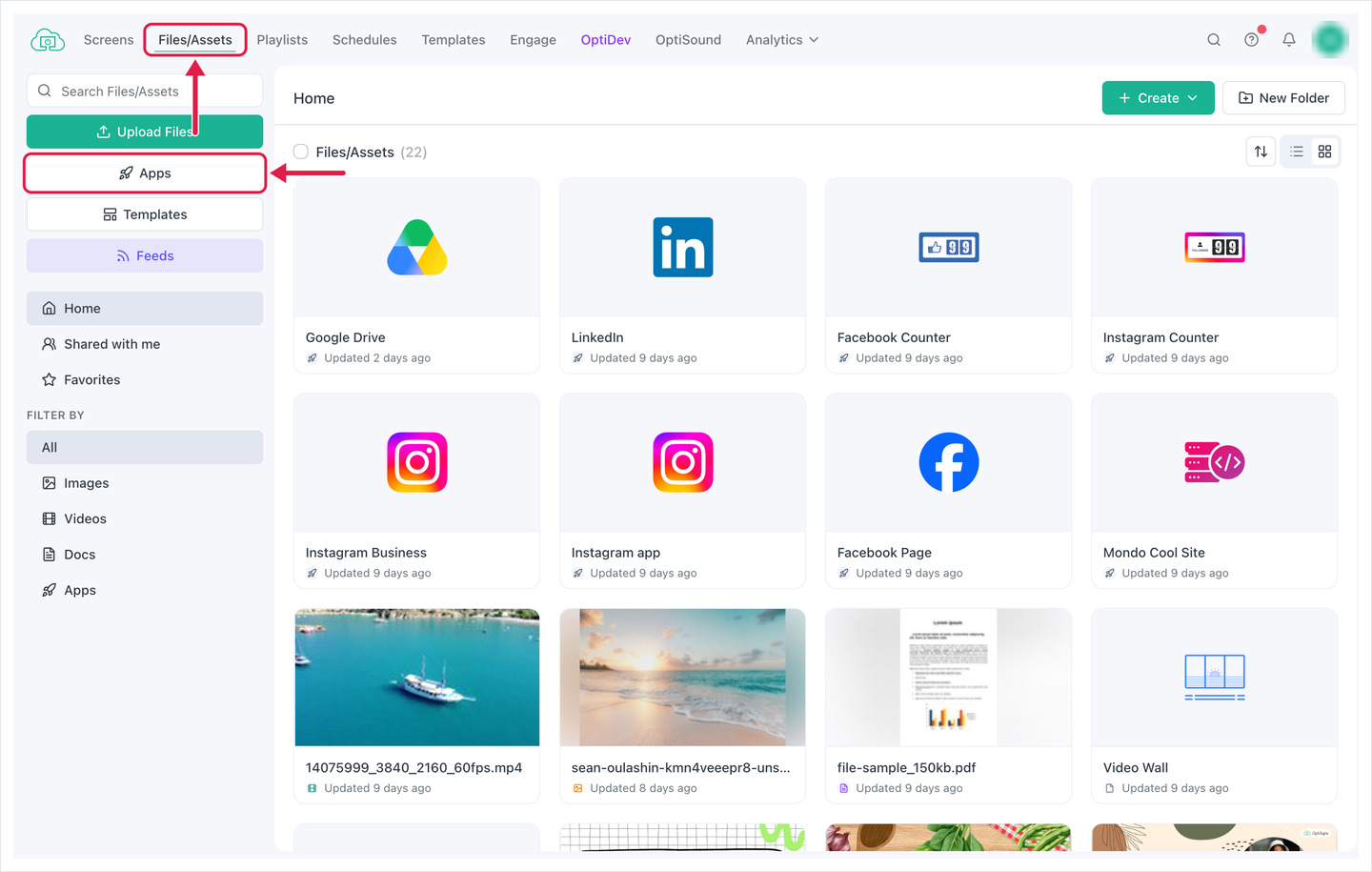

Go to the OptiSigns portal. Go to Assets → Add Asset → Apps.

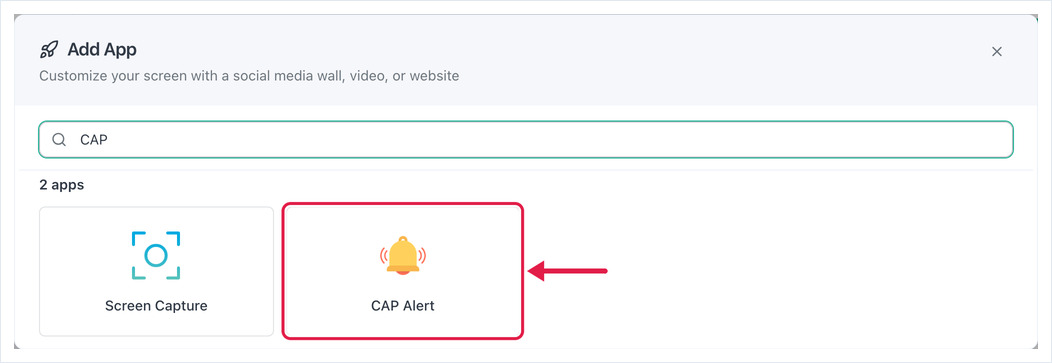

Select CAP Alert:

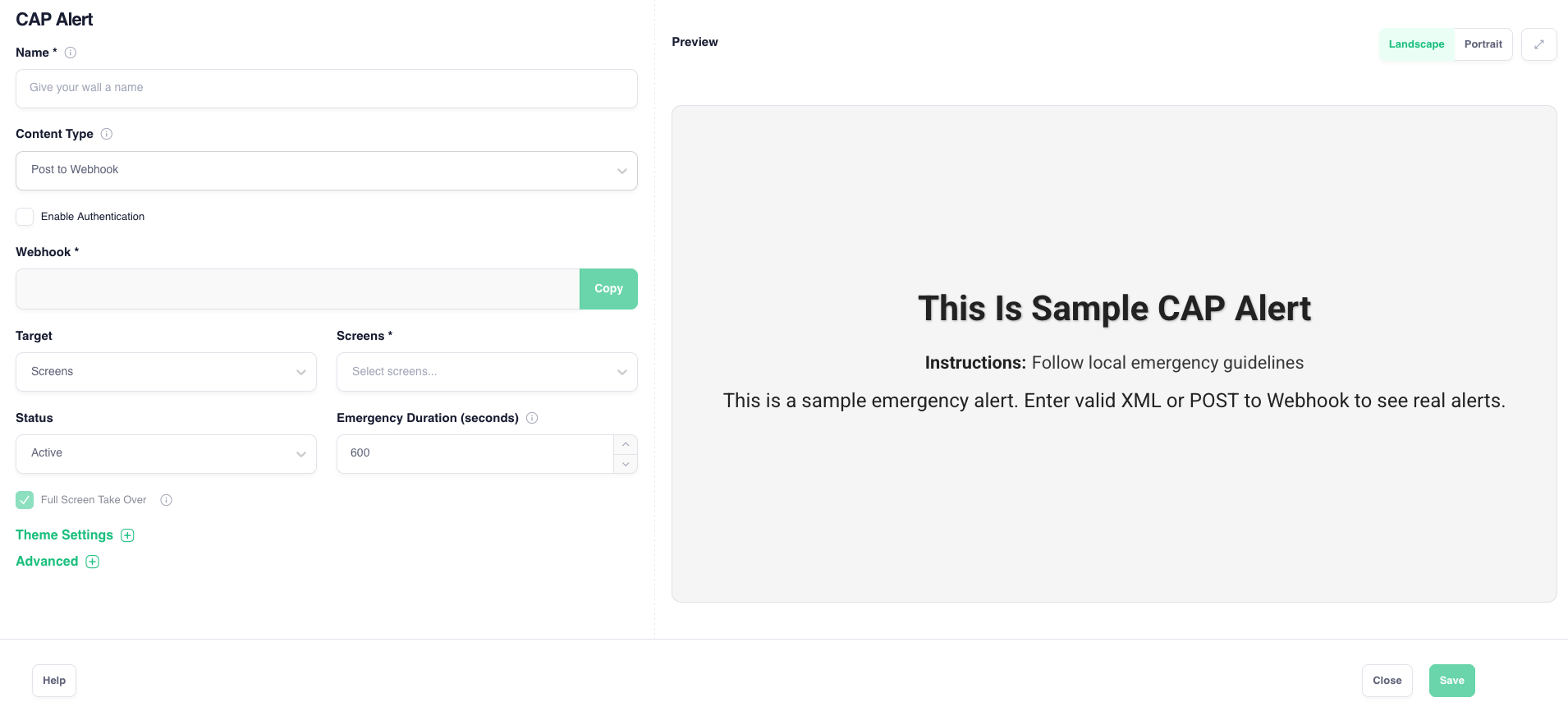

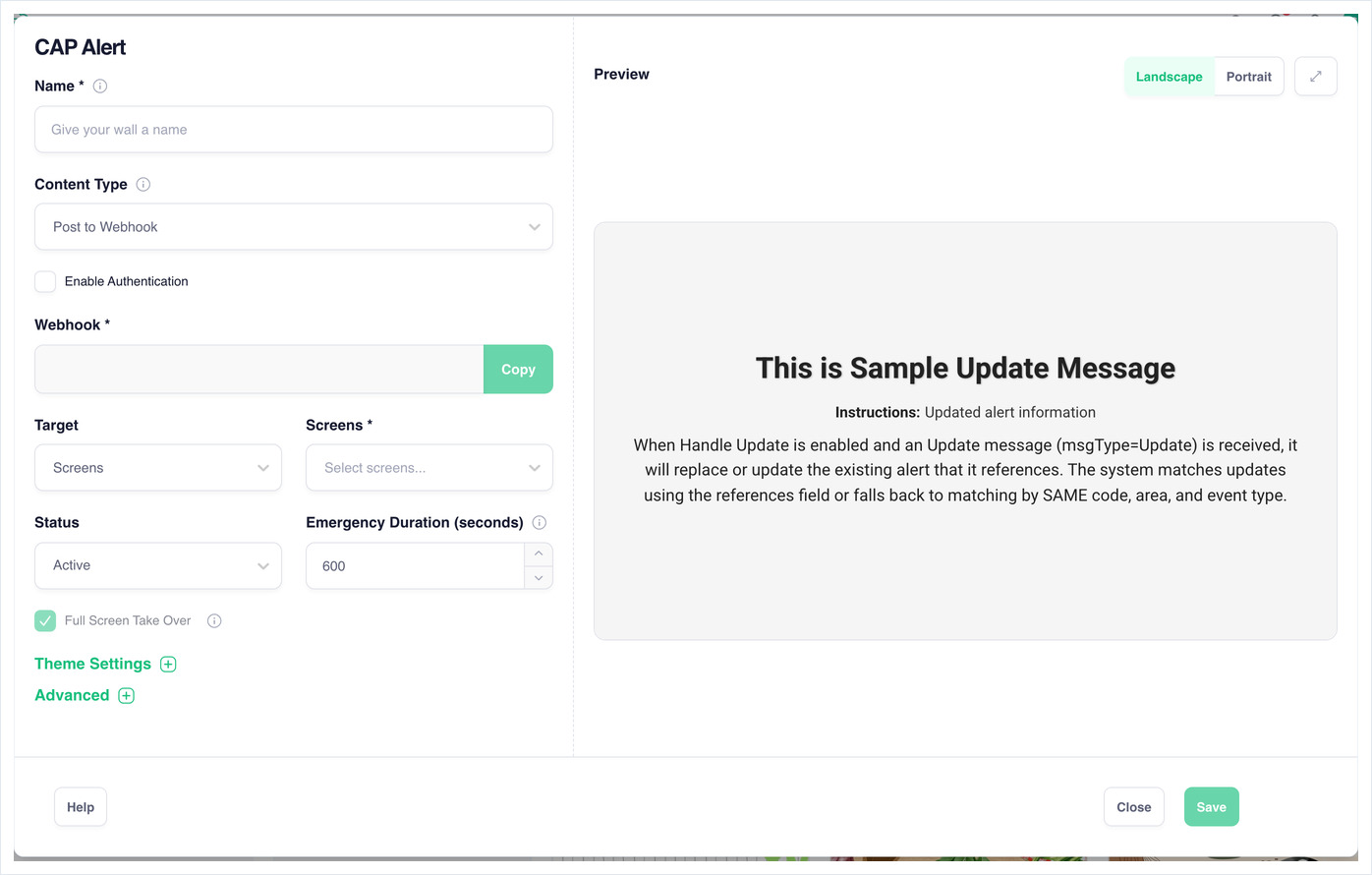

Now you can set up your Looker Studio app:

Name - Name of your assets, this will not be displayed on the screens.
Content Type - Choose between Post to Webhook or XML.

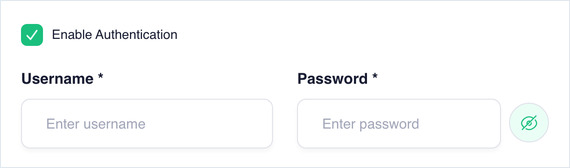

Enable Authentication - When checked, will add a Username and Password section to check Authentication.
Webhook / XML - Depending on whether you've selected "Post to Webhook" or "XML" above, here is where the webhook or XML script will be placed.
Target - Choose whether this alert will target a specific screen, or tag.
Screens/Tags - Select which screens or group of screens (tags) you want to target for this emergency. (i.e. Fire in building/location 1)
Status - Swap between Active or Inactive for this alert.
Emergency Duration - How long the CAP Alert will take over the screen. Measured in seconds.
Content-Type - Select "Post to Webhook" if you would like to post the CAP/IPAWS message to your signage. The app also supports RSS feed.
Webhook - The app will generate a webhook URL after it is saved. This is what you should share with the emergency alert system.
Display Type - Currently the app will take over the full screen when there is an emergency
State - Set the app to active or inactive.
Emergency Duration - How long the emergency message will take over the screen. The value can be overwritten by the webhook call.

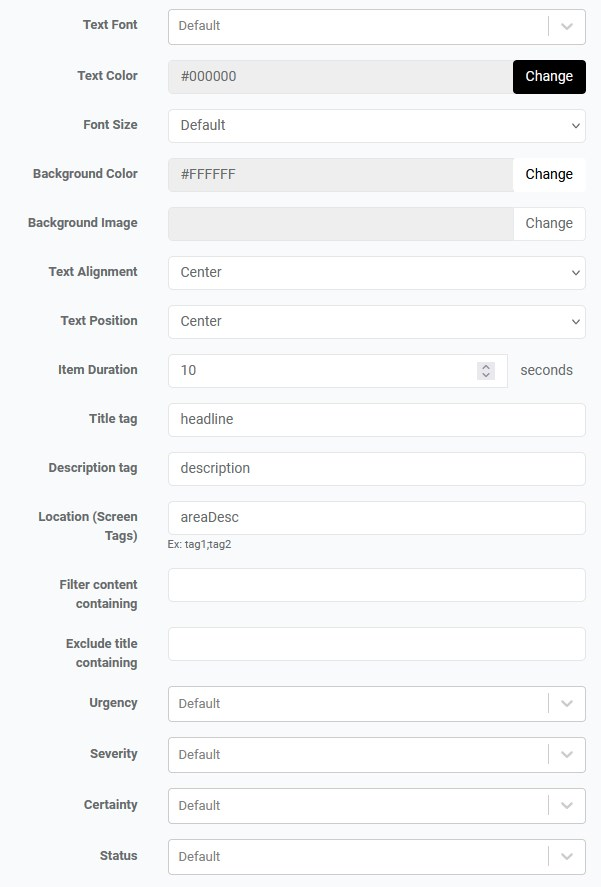

Theme Settings

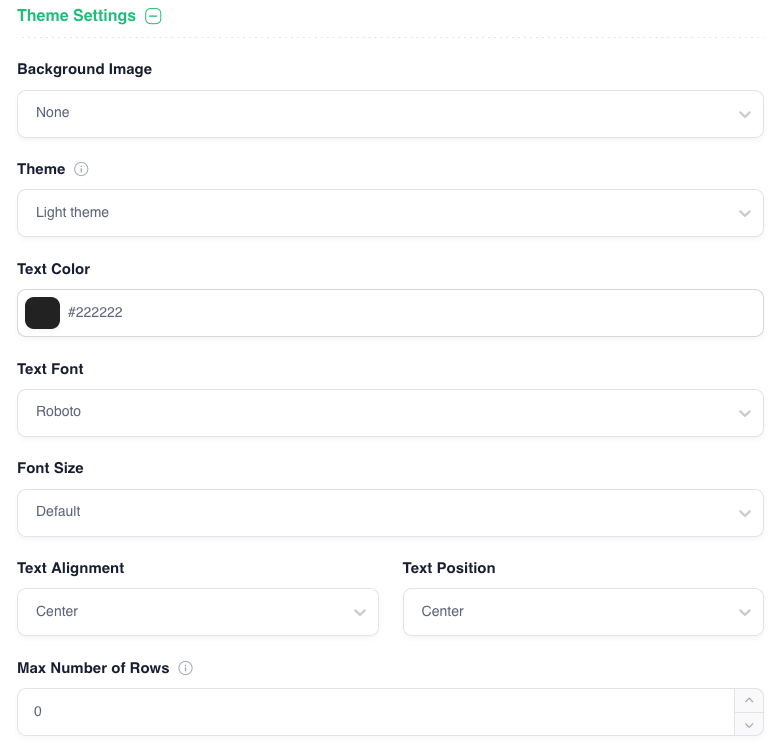

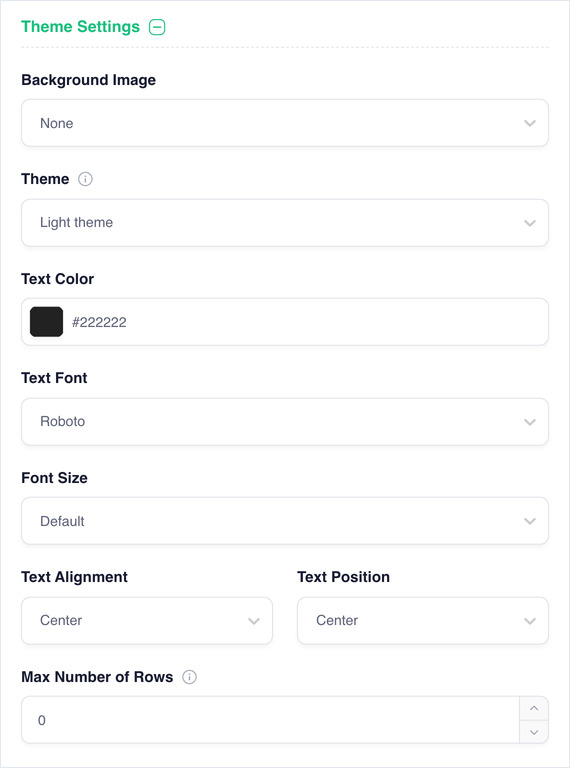

Click Theme Settings to expand the field and provide a slate of additional options:

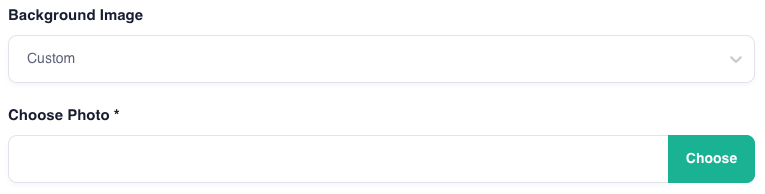

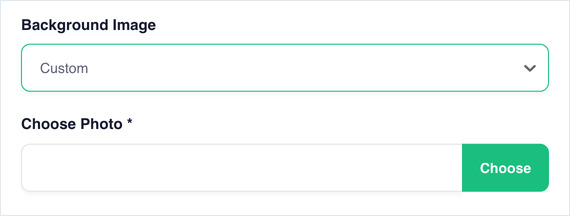

Background Image: Lets you choose a Background image for your RSS feed. When Custom is selected, it will give you the opportunity to Choose Photo:

This photo must already exist as an asset within OptiSigns.
Theme: Choose between Light and Dark theme. This will disappear if Background Image is set to "Custom".
Text Color: Determines the text color. Can be chosen with Hex Code or via color picker.
Text Font: Choose the font for the text.

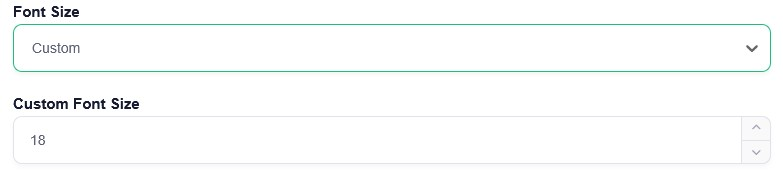

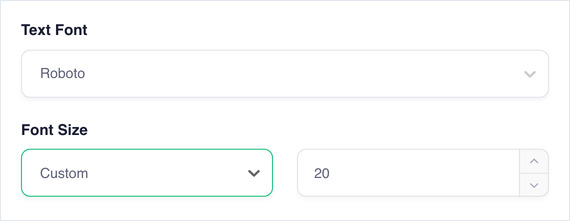

Font Size: Choose between Default Font Size, or Custom. When Custom is selected, will provide a new option: Custom Font Size.
- Custom Font Size: Choose your font size.
Text Alignment/Position: Choose the alignment and position of the CAP Alert text.
Max Number of Rows: Choose the maximum number of rows to dedicate to the CAP Alert feed.

Advanced Settings

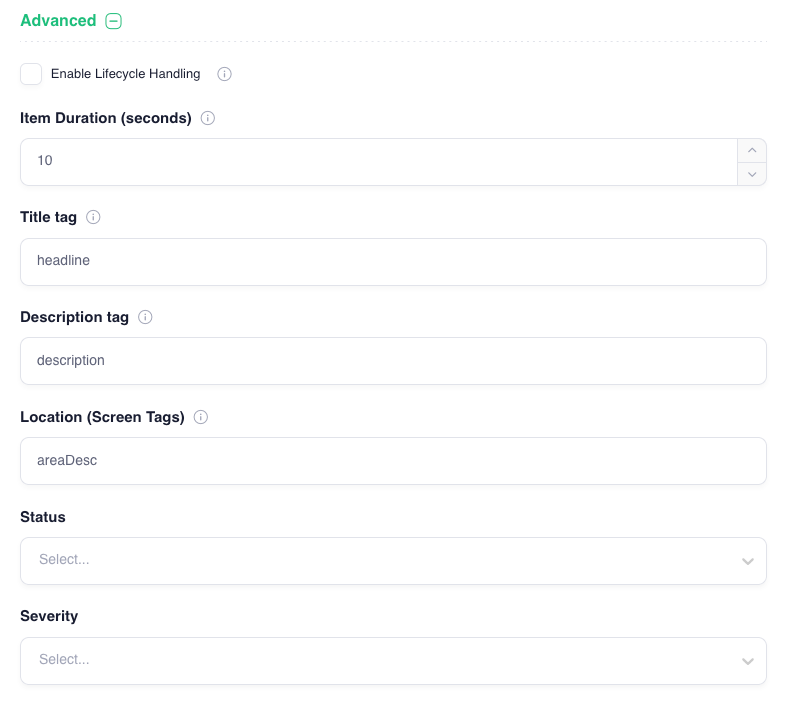

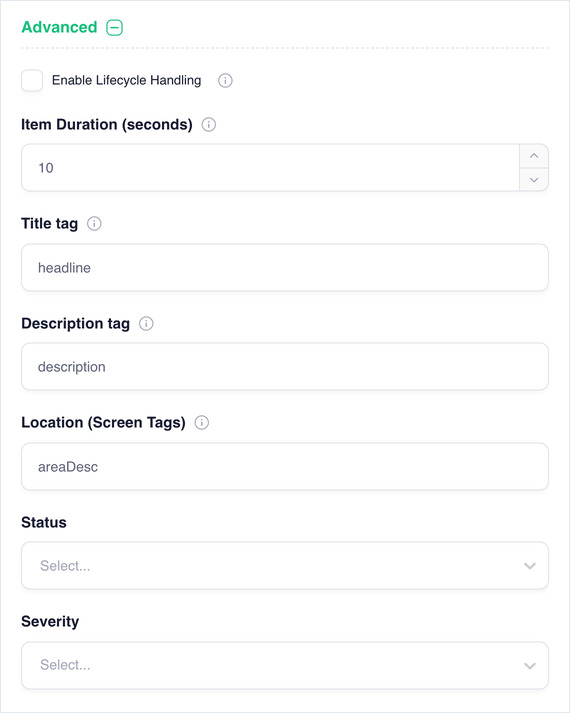

Click Advanced to expand the field and provide a slate of additional options:

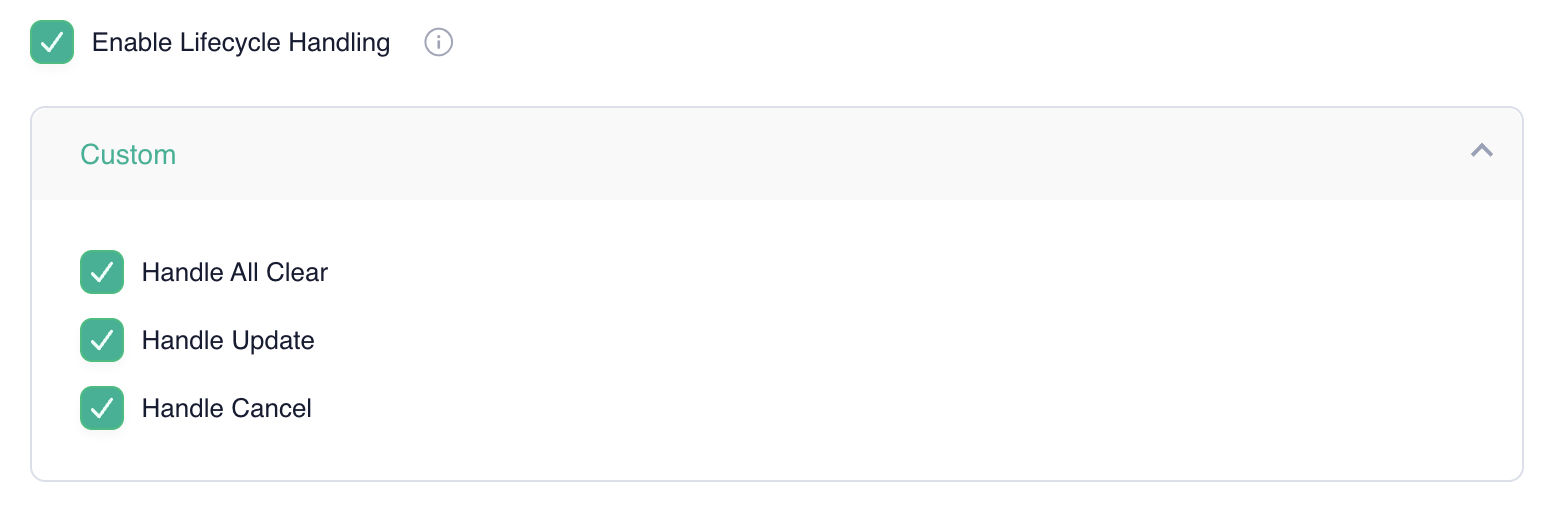

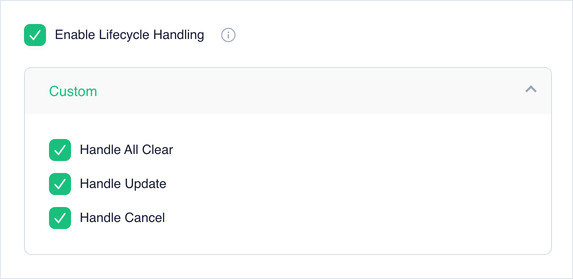

Enable Lifecycle Handling - When checked, it allows handling of CAP message lifecycle events including Update, Cancel, and All Clear messages. It does this by checking the <identifier> field. This option is only applied when "Post to Webhook" is set as the Content Type. It also enables the below options:

Handle All Clear - When enabled, if the alert system sends an "All Clear" message, a brief "all clear" notice will display on all screens for 60 seconds by default. Once this time has passed, content will resume as normal.

MORE ABOUT ALL CLEAR

OptiSigns handles All Clear messages in this way:

First, it finds the <responseType> in the message:

<responseType>AllClear</responseType>
Then, it checks the <expires>:

<expires>2027-01-31T11:23:46-05:00</expires>
If AllClear is noted in the response type, it will display the message until the designated expires time. If no time is sent, it will default to 60 seconds.

Handle Update - When enabled, the app will automatically refresh screens with additional information on the emergency alerts as updates become available.
Handle Cancel - When enabled, the app looks for a "Cancel" message referencing a previous alert. If detected, the emergency alert is immediately removed from your screens and normal content resumes.
Item Duration - How long each individual item in the CAP Alert feed will display.
Title Tag - Message title from the CAP/IPAWS message/RSS feed. Default is <headline> - you can change if your feed is different
Description Tag - Message content from the CAP/IPAWS message/RSS feed, default is <description> - you can change if your feed is different
Location (Screen Tags) - If you can match the screen tags with your location passed from the CAP/IPAWS message/RSS feed - you can use it to control the selection of the target screens. By default, it maps to the "areaDesc" attribute from the CAP alert.

IMPORTANT

A common issue we find is the screen displays a "No Content Available" message after users push out the CAP alert using "aeraDesc" an attribute. The solution: if you are not intending to use screen tags to map to location, try changing the Location value from "areaDesc" to any other value, like "areaDesc2".

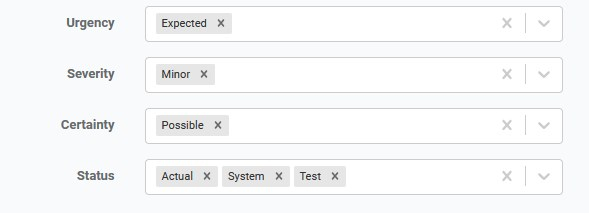

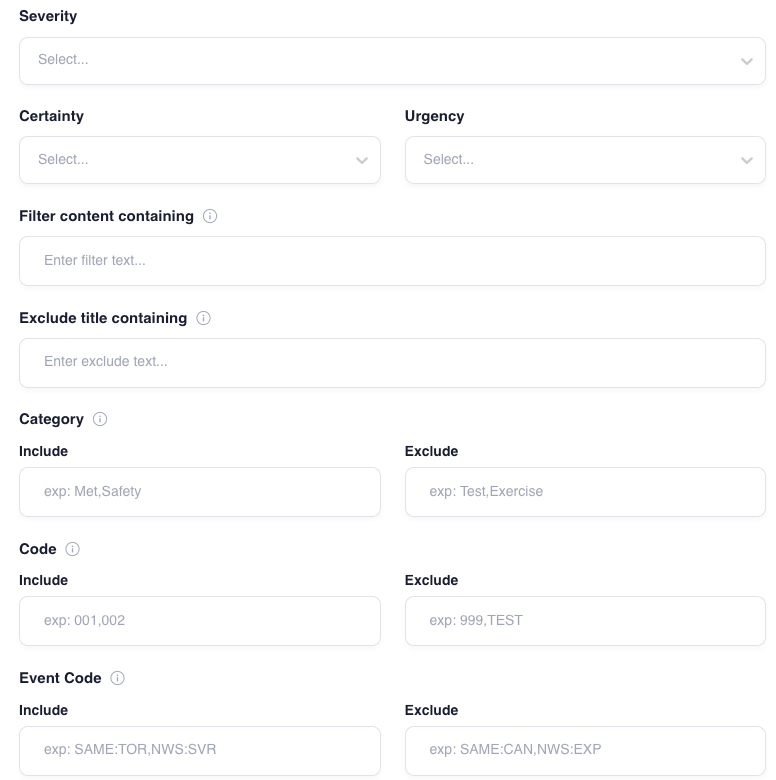

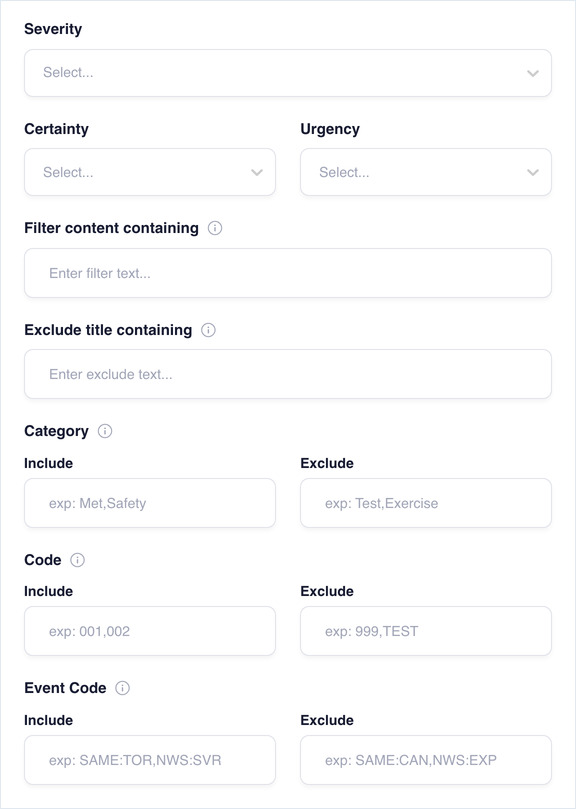

Severity, Urgency, Certainty - Standard attributes of CAP / IPAWS messages, these options allow you to control the filter of the messages. By default, the app will be triggered on all values. However, you can set these similar to tags - this will filter out anything that does not include these tags.
Filter content containing - Allows content to be filtered based on specific words in the title or description. I.E: "fire", so if any title or description contains the word "fire" (non-case insensitive), the app will trigger the screen takeover.
Exclude title containing - Filter only applying to the title. You can hide all the old feeds by filtering with specific words in the title. I.E: “All Clear”, so after the emergency is gone, all the feeds before this title will be hidden, then the screen will revert to the original content or just display the new content after that.
Category, Code, Event Code - Additional filters allowing you to include or exclude certain event categories, codes, or event codes.

When finished, click Save.

How to Test Your CAP Alert

After Saving, the app will generate a Webhook URL automatically. When this Webhook is called, it will perform the functions designated in your CAP Alert app. If you share the Webhook URL with your Emergency Alert System, it will be able to trigger this Webhook during an emergency and take over the screens.

To test your CAP alert integration, we recommend using Postman to post a CAP/IPAWS message to the Webhook.

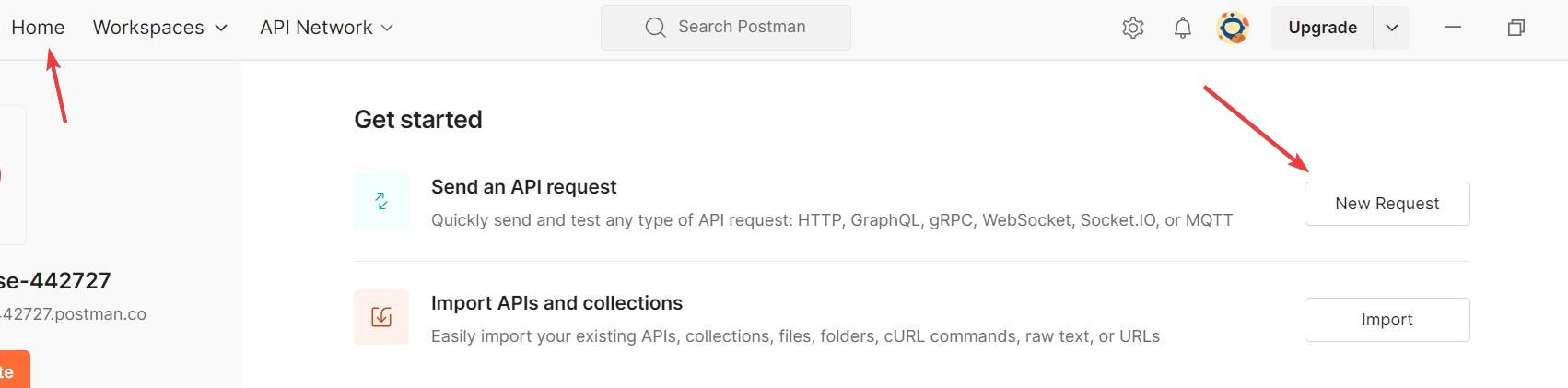

First, download or log in to Postman. Once there, navigate to Home → Send an API request → New Request:

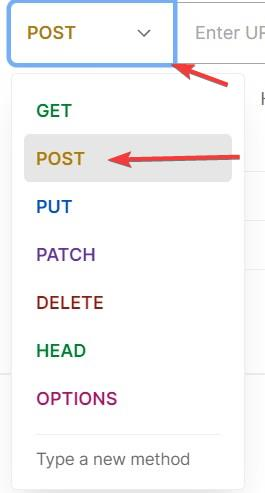

Once here, change the request type to POST:

postman demonstration of how to select POST option

Input the Webhook URL for your CAP Alert next.

Now, navigate to the Body tab. Here, you can send data two ways: URL encoded or as a raw XML file. Here we will assume you are sending your data as raw XML, as this is the most common format we see from Emergency Alert Services.

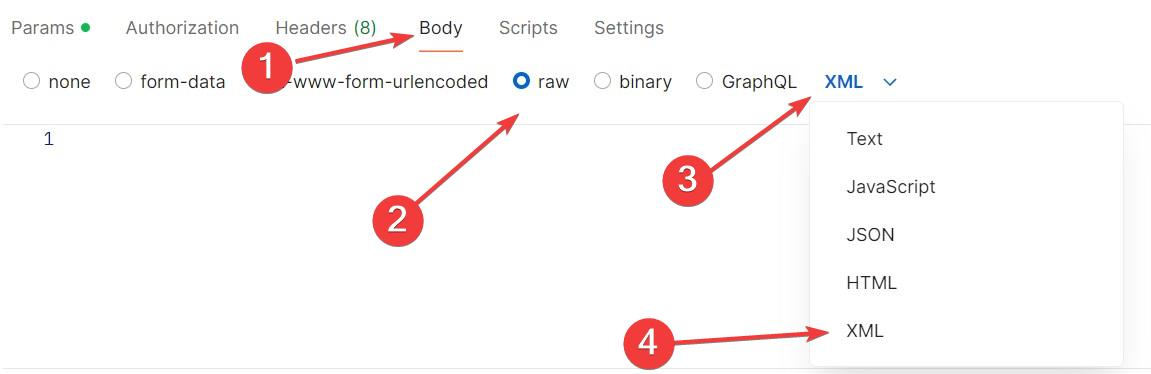

CAP/IPAWS Alerts are generally delivered via an external Emergency Alert System, which are saved as .xml or .txt files. These are broadcast via the Common Alerting Protocol Version 1.2. To push an XML file, click the raw → Dropdown → select XML.

Then, copy and paste the following piece of test code into the field:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<alert xmlns="urn:oasis:names:tc:emergency:cap:1.2">
    <identifier>ALERTUS_2317_67_20230131_162046</identifier>
    <sender>Tester</sender>
    <sent>2023-01-31T11:20:47-05:00</sent>
    <status>Actual</status>
    <msgType>Alert</msgType>
    <source>Alertus eEAS Server</source>
    <scope>Public</scope>
    <addresses>ALL</addresses>
    <code>IPAWSv1.0</code>
    <info>
        <language>en-US</language>
        <category>Safety</category>
        <event>TEST Event Name Override</event>
        <responseType>None</responseType>
        <urgency>Immediate</urgency>
        <severity>Severe</severity>
        <certainty>Observed</certainty>
        <eventCode>
            <valueName>SAME</valueName>
            <value>LAE</value>
        </eventCode>
        <effective>2023-01-31T11:20:47-05:00</effective>
        <onset>2023-01-31T11:20:47-05:00</onset>
        <expires>2023-01-31T11:23:46-05:00</expires>
        <headline>Test286</headline>
        <description>This is a Test of the Alertus Emergency Notification System. NO ACTION is Needed. In a real emergency, this system will be used to provide emergency information and protective actions. Please return to your normal activities.</description>
        <area>
            <areaDesc1>Tag1</areaDesc1>
            <geocode>
                <valueName>SAME</valueName>
                <value>000000</value>
            </geocode>
        </area>
        <parameter>
            <valueName>duration</valueName>
            <value>30</value>
        </parameter>
    </info>
</alert>

It will look something like this:

postman xml input example

You can set the duration of the CAP/IPAWS alert message as well. In raw XML format, you can pass the duration value through a system parameter in your CAP alert message.

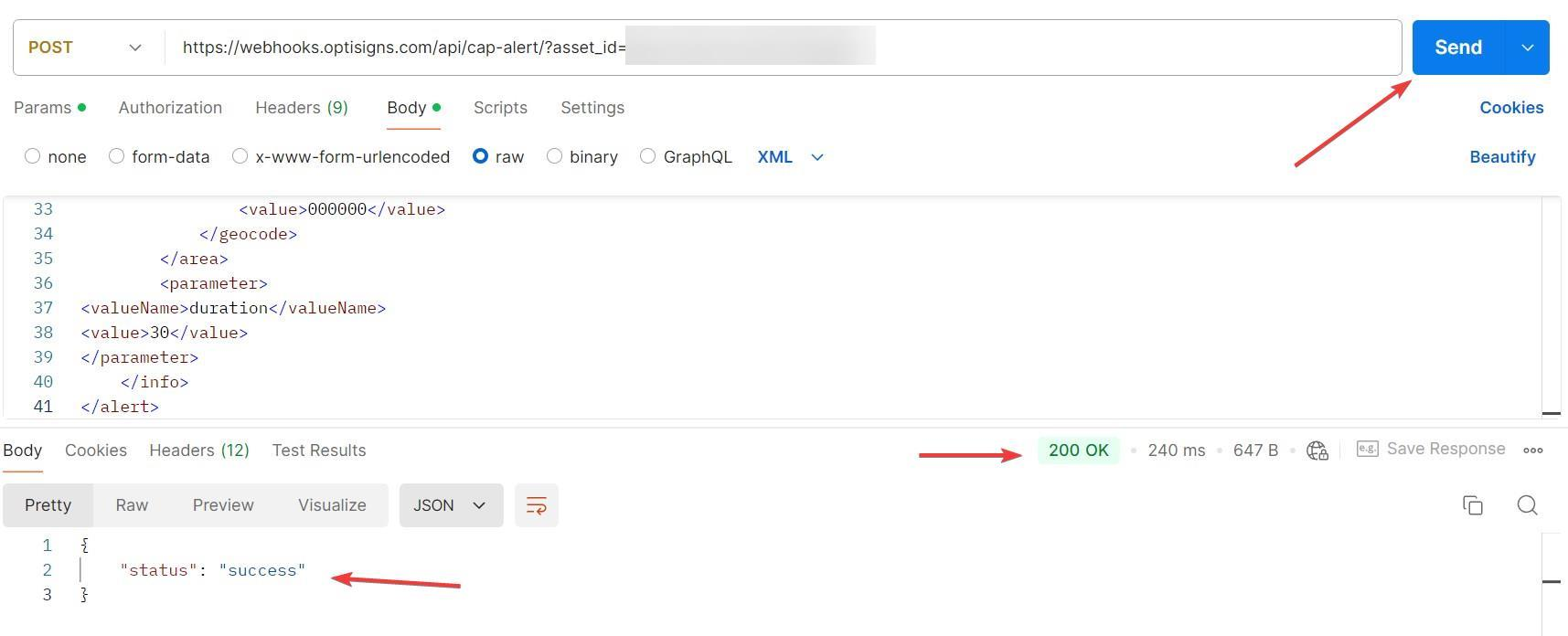

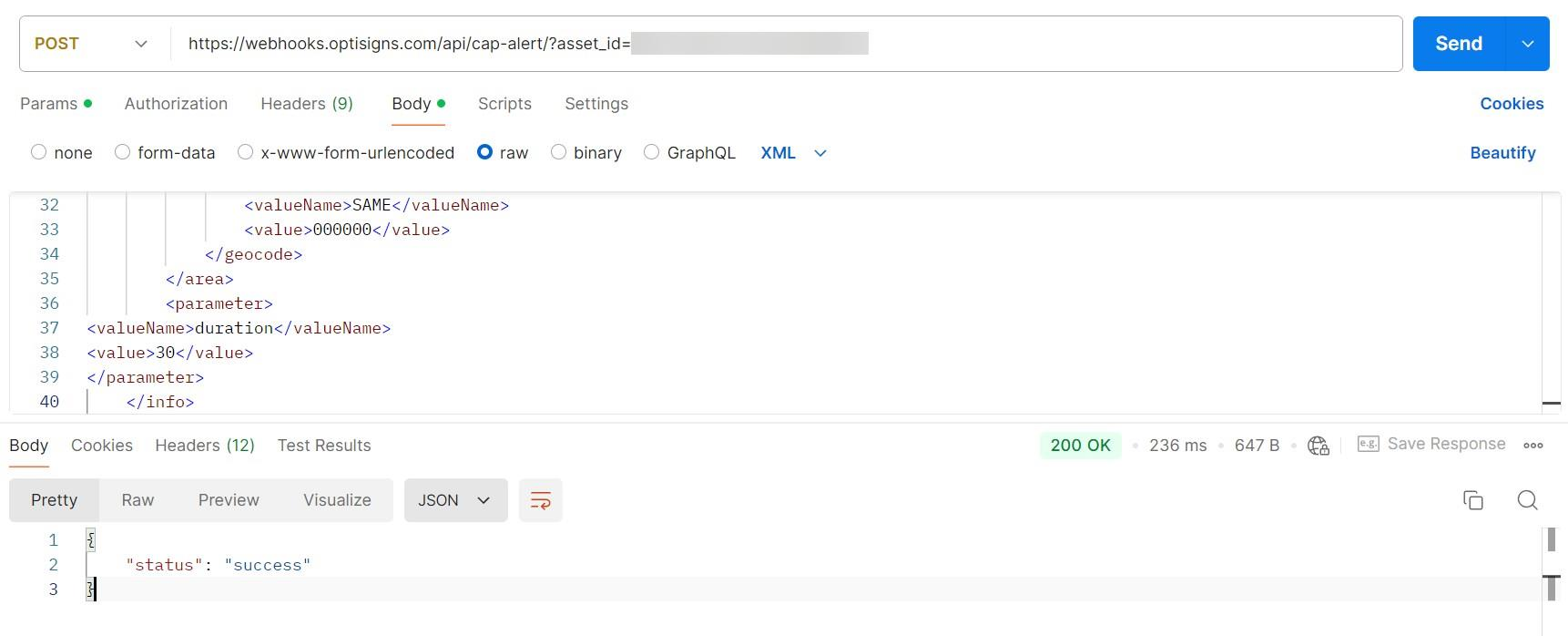

Now, to test the request, hit Send. A piece of text should appear on the console below. If the test was successful, it should give a 200 OK code and say "status": "success":

postman showing code layout under raw data tab

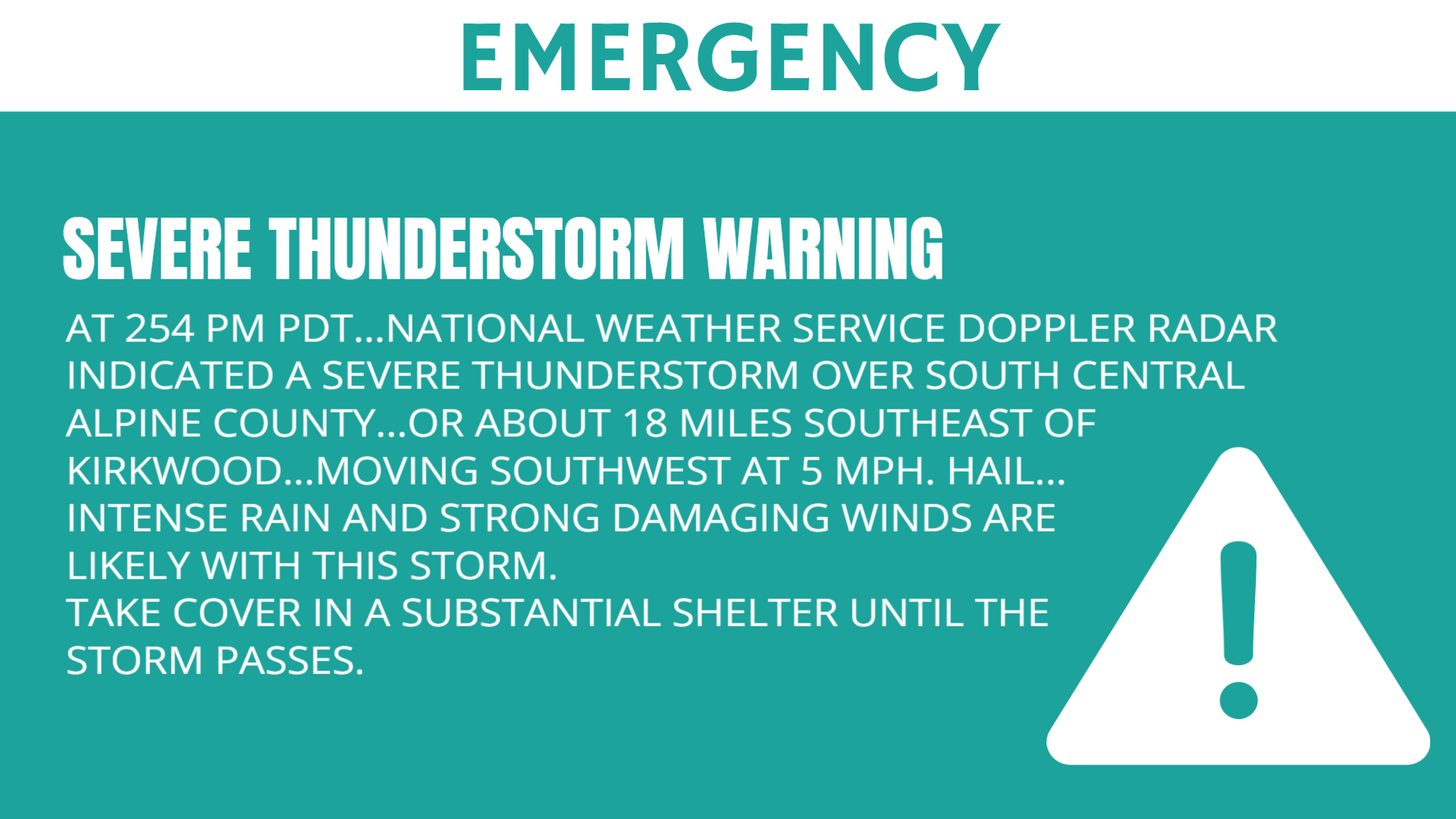

And this message (assuming all the defaults were kept in the CAP Alert app) will appear on your screen:

test message for the CAP alert system

Creating a Test Request in urlEncoded Format

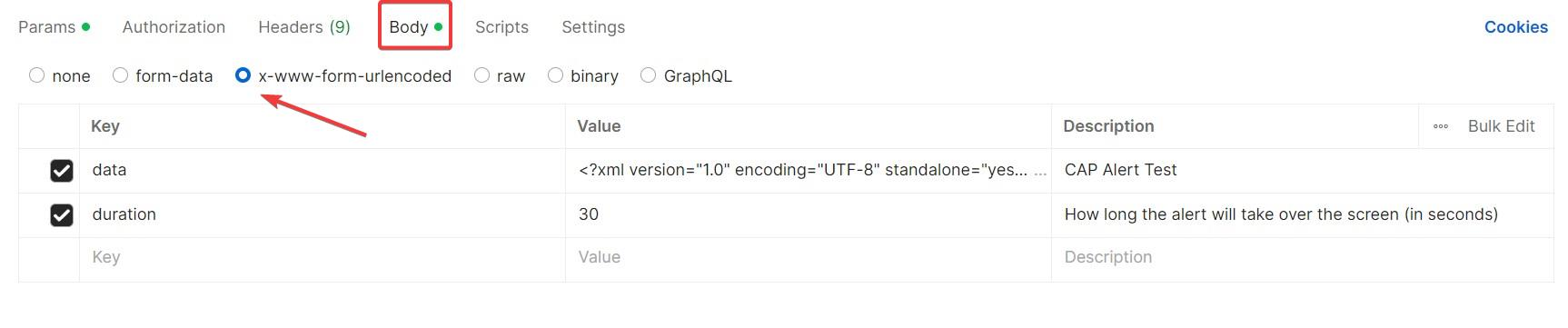

Using urlEncoded format, the duration can be passed as URL parameter together with data.

example in postman of urlencoded format

The rest of the test can be performed identically.

That's all!

If you have any additional questions, concerns or any feedback about OptiSigns, feel free to reach out to our support team at support@optisigns.com
