The OptiSigns Mobile Admin App offers remote control over your digital signage assets. Whether you're without a laptop, misplaced your remote, or far from your screen, this app provides a streamlined, user-friendly solution. This guide will help you set up and use the app effectively.
In this article:
- Setting Up Wi-Fi
- Pairing Your Screen
- Screen Management
- Media Management
- Playlist Management
- Schedule Management
- Remotely Control
1. Setting Up Wi-Fi
|
Note: Wi-Fi setup and remote control features are only available for the OptiSigns Android Player. An internet connection is required for the initial setup of the OptiSigns Digital Signage app. |
Steps to Set Up Wi-Fi:

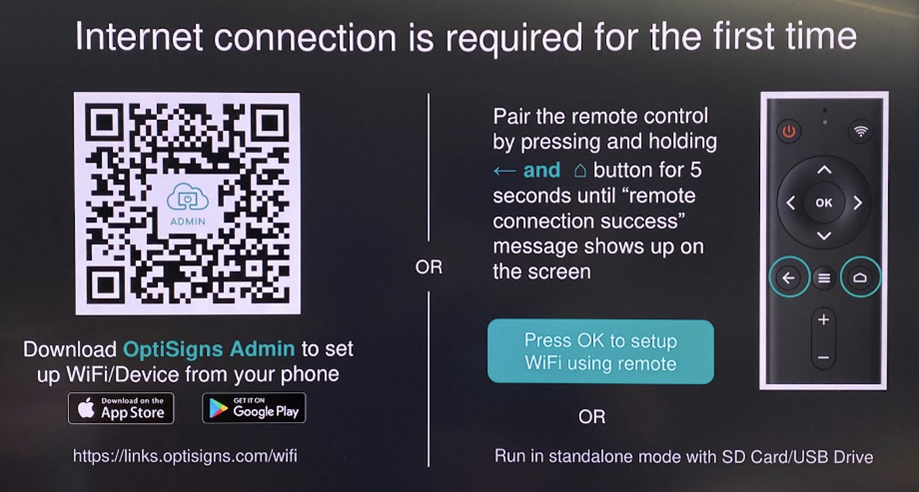

- Download the OptiSigns Admin App by scanning the QR code displayed on your screen, as shown below:
- Launch the OptiSigns Admin App → Log in to your account.
- Tap the menu button in the top left corner.
- Select "Setup Wi-Fi" → Then, click "Continue"
- Choose the device you want to configure. (Typically named OptiSigns_Player unless renamed.)

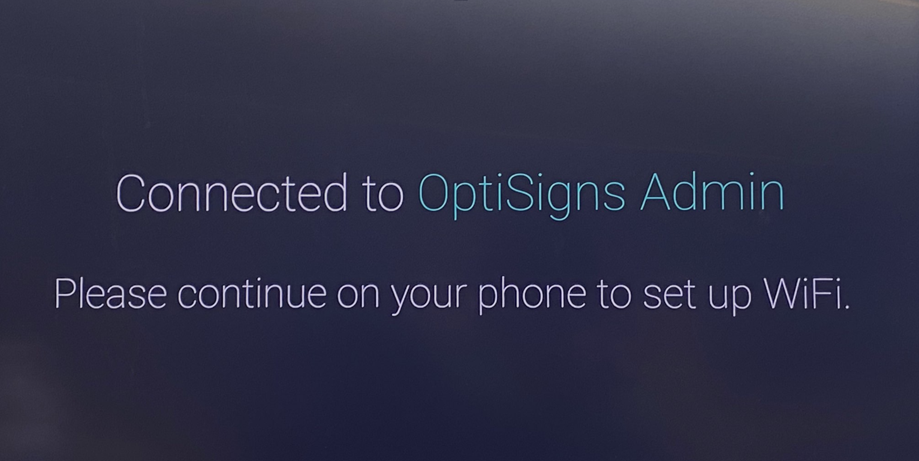

- Once connected, the screen will show "Connected to OptiSigns Admin".
- Choose your desired Wi-Fi network.
- Input the Wi-Fi password → click "Save"
Your device is now connected to the Wi-Fi network.
2. Pairing Screen
Once connected to the internet, your OptiSigns Android Player is ready for pairing.
Steps to pairing your screen:

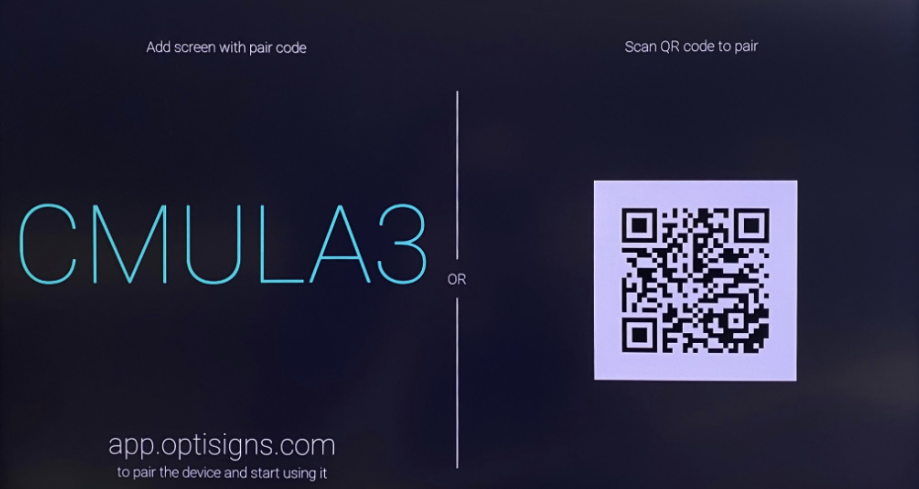

- The screen will display a pairing code.
- Enter this code in the Screen section of the app, or scan the QR code on the right side.
For detailed instructions on each setting up and adding a screen, please visit this article.
|
Note: |
| The Screen section on the OptiSigns Mobile App has some limitations. It cannot preview content before displaying it, and it doesn't have the scheduling features available in the web version. |
3. Screen Management
Manage all screens paired with your account easily from the mobile app.
Steps to Manage Your Screens:
Tap the Screen icon on the bottom left navigation bar → Tap the 3 Dots icon → Select Edit, Move, or Delete
- View the status (Online/Offline) of all paired screens on the main screen.
-
Edit a screen:
- Tap the 3 Dots Icon next to the screen name
- Then, select whether you want to edit, move, or delete a screen.
-
Edit multiple screens:
- Tap "Select" at the top right corner
- Select multiple Screens
- Use the buttons at the top of the screen to edit, move, or delete these screens.
4. Media Management
In the Media section, you can upload and manage files, videos, and images from your OptiSigns account.
You can access the Media Section by tapping the icon directly to the left of the home icon, as shown in the screenshot below.
-
Use the search bar to filter your assets.
-
List/Box Square icon - change asset view preferences to display as a list or small icons.
-
Tap directly on an asset to view its detailed information, such as type, tags, app type, created date, and last updated time.
-
3 Dots icon - This will allow you to manage assets.
-
Move
-
Rename
-
Add to a playlist
-
Delete asset
-
-
Select option - select and manage multiple assets at once.
-
Green Plus Icon to add new assets.
- Folder - Create a new folder.
- Camera - Take and upload images instantly.
- Upload - Add files, images, and videos to your account.
4.2 Managing Assets from Edit Screen
In the Screen Section, tap the Edit Screen option. From there, you can manage your content:
-

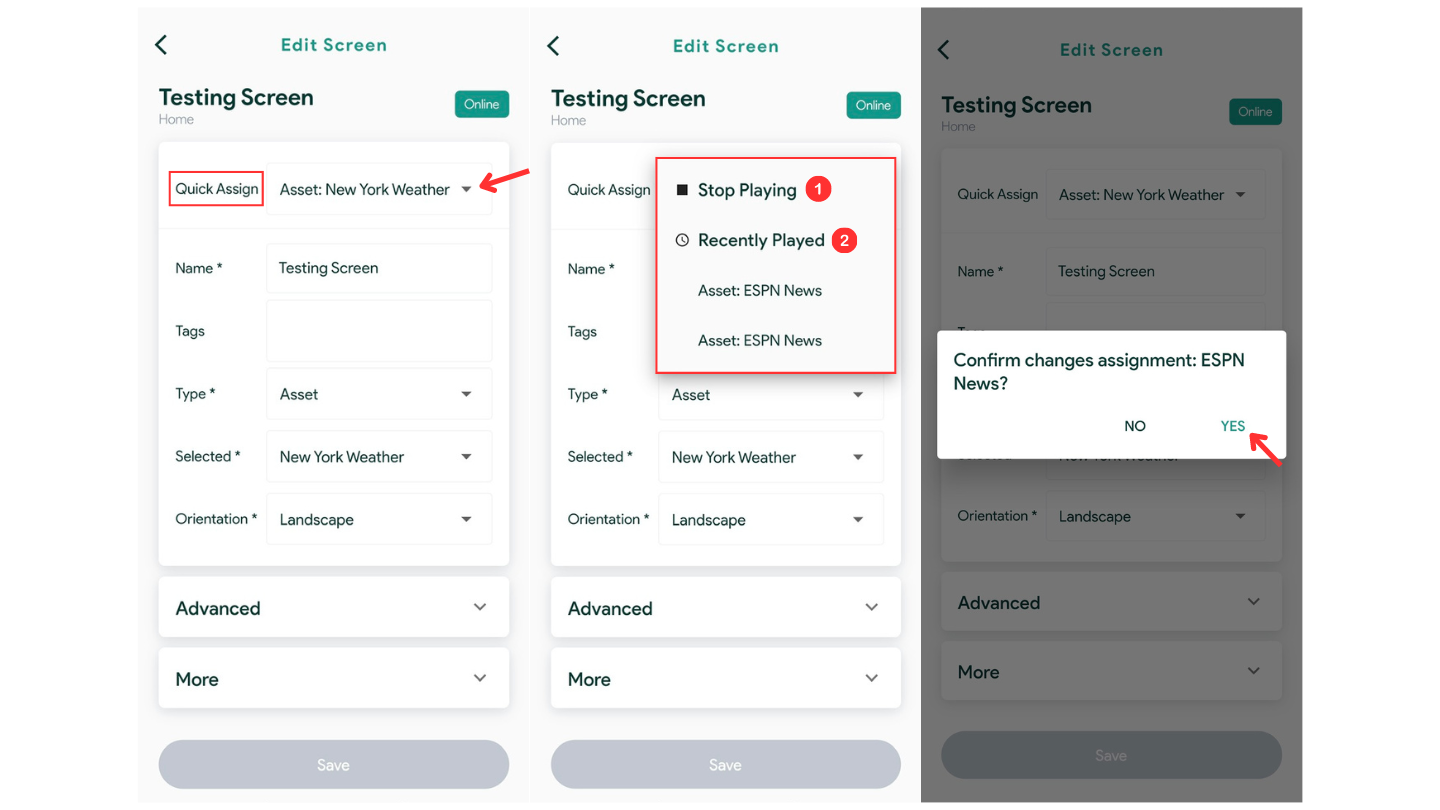

Quick Assign - to take swift actions on your screen.
- Stop Playing - Immediately stop the current asset without replacement.
- Recently Played - Preview and select previously displayed assets to replace the current one.
- Name - Name of your screen
-
Tags - These are free-form text fields that you can use to help organize according to a nomenclature that makes sense to your team.
- Examples would be a location in the building or room, Room Types, TV platform and sizing, etc.
-
Type - Select what will be bound to the screen
- Asset - This is a specific content type such as images, videos, or app instances i.e. Weather app or Designer app
- Playlist - Selecting this allows you to from the drop-down which will bind the screen to a specific playlist. A playlist is a grouping of assets and or nested playlists in a specific order.
- Schedule - Selecting this allows you to from the drop-down designate a schedule you want the screen to follow.
For detailed instructions on the Advanced and More Settings option, please follow this link.
| Note: This feature is exclusively available on OptiSigns Android Player. Simply ensure Bluetooth is enabled on your phone to activate this feature. |
Limitation
While you can upload and view all assets, creating various apps (Social Media, Weather Wall, News, etc.) is not supported on the mobile app.
4.3 Changing Displayed Content from Edit Screen
Navigate to the Screens tab → Edit the desired screen → choose "Type" and assign your desired asset/playlist/schedule
Limitation
The Media section on the mobile app does not support the "Push to screen" feature or other options available in the File/Asset section on the web version.
5. Playlist Management
To access the Playlist section:
Please tap the 3 Dot icon, located to the right of the home button.
Here you can view and manage all your available Playlists.
- Use the search bar and sort feature to filter through your Playlists.
- Select option: select and manage multiple Playlists at once.
-
Green Plus Icon to add new assets or create a Nested Playlist
- Asset: add new assets to the Playlist.
- Playlist: add a new playlist to the Playlist. For more information about Nested Playlists, please follow this link.
-
Pencil icon: change the duration of assets within the Playlist.
- Select option: select and change multiple assets duration at once.
- Delete: Swipe left to delete an asset from the Playlist.
- Hold and move assets: to arrange the order in the Playlist.
- Playlist color: change the playlist color for better organization.
-
3 Dots icon: This will allow you to manage the Playlist.
- Options: for more Advanced settings. To understand the function of each setting option in the Playlist Settings, please follow this article.
-
Move
-
Duplicate
-
Delete
To display a Playlist:
Navigate to the Screen Section → Edit the desired screen → choose Type, and assign your desired Playlist.
Limitation
Like the Media section, the "Push to screen" feature is not available.

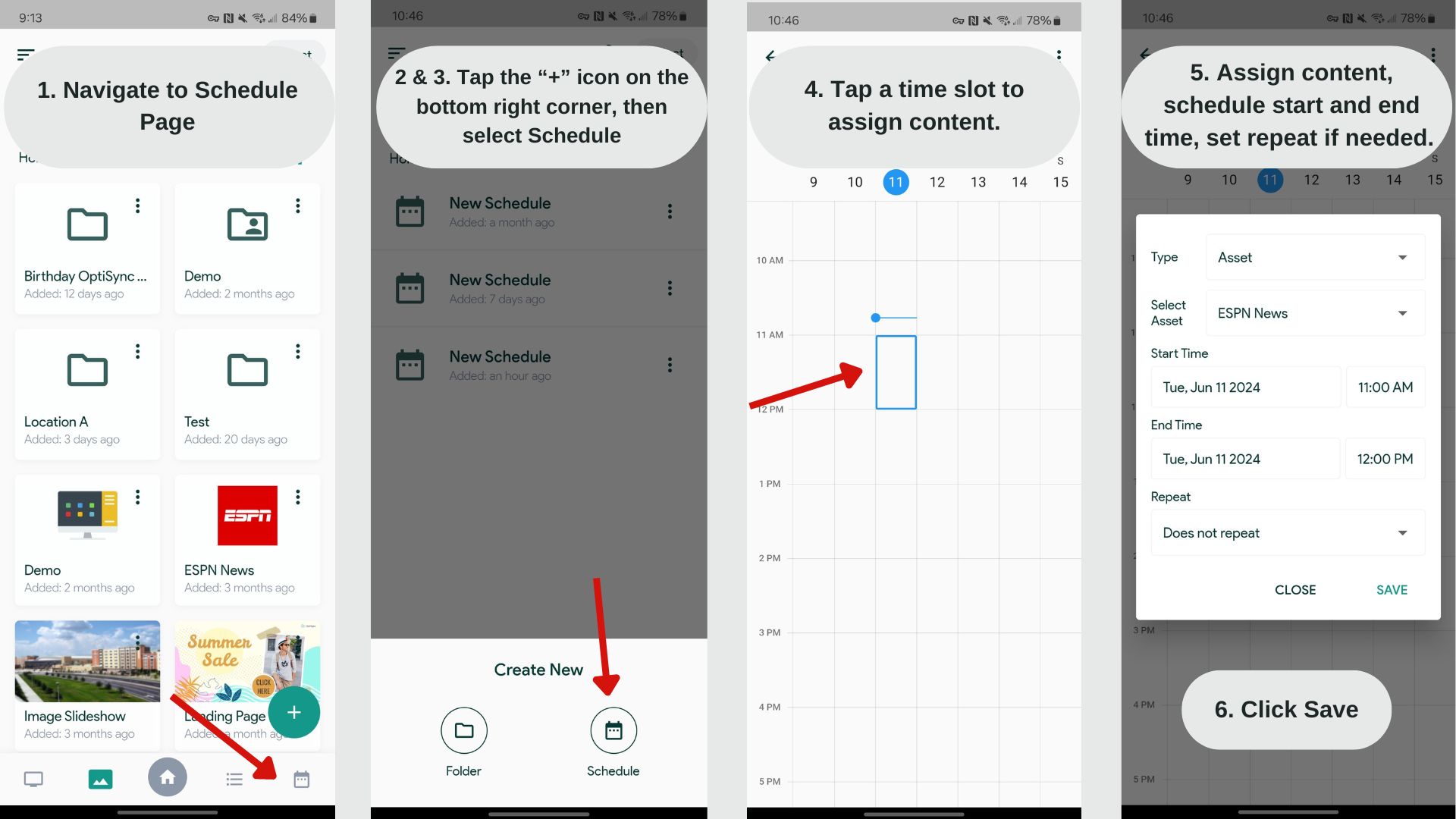

6. Schedule Management
In this section, you can view and adjust any available Schedule on your account.
- For more detailed instructions on how to create a schedule, please reference this article.
Limitation
The "Push to screen" feature is not available.
7. Remotely Control
Never worry about misplacing or damaging your OptiSigns Android Player remote again!
With the OptiSigns Admin mobile app, you have the ultimate remote control solution right at your fingertips.
7.1 Connect as Bluetooth Remote in the Edit Screen Section
After pairing screens to your account:
- Navigate to the Screen section.
- Select the screen you want to control remotely.
- Scroll down below the Save option.

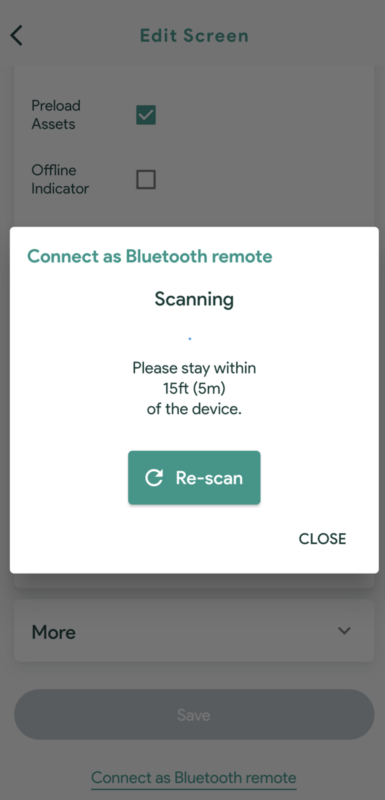

- Click on Connect as Bluetooth Remote option.
A scanning window will appear and quickly connect to your device, then you'll be taken to the remote interface.
We recommend using this method as it is the fastest and easiest way to connect and use the remote control feature on your OptiSigns Admin Mobile app. However, please note that this option is available only if the screen is already paired with your account.
For more detailed instructions, see How to use the Mobile App for Remote Control.
That's it!
OptiSigns Mobile Admin App makes managing your digital displays effortless!
If you have any additional questions, concerns, or any feedback about OptiSigns, feel free to reach out to our support team at support@optisigns.com.
