How to use Secured Dashboard App

Follow

Displaying KPI and reports on the screen is a common use case for enterprise customers, however companies are using different reporting systems, which make this a difficult task to accomplish. OptiSigns had delivered Web Scripting App for customers to access their password protected reporting systems without coding, it also supports Multi Factor Authentication, for details please follow this article.

Web Scripting App executes the scripts locally on the device, it is the recommended solution for customers to access their reports. However, there are still cases that customers need another way to execute and display the reports. Below are a few examples. Secured Dashboard is recommended in these situations.

• Customers use same account with MFA to authenticate on multiple devices. Since MFA is using one time passcode, it will error out if multiple devices authentication are started the same time.
• Customers have a mixed device fleet, like Windows and Android are used together. Reports may render differently on windows and Android, which may cause inconsistency on the report presentation.
• Customers have reports that take long time to execute/load, and looking for ways to avoid showing the loading status on the screen.

Secured Dashboard App will take the same scripts you recorded with Web Scripting App, and put it to execute on a dedicated instance and return a screenshot of the reports. It can help address all the situations mentioned above and more.

Let's jump in and get started:

1. Get the scripts ready
Secured Dashboard uses the same scripts you recorded when you use Web Scripting App. You can follow the document below and use Burp Suite Navigation Recorder to prepare the scripts and test it on the Web Scripting App.
How to use Web Scripting App – OptiSigns
If you are using MFA, you can follow this document, to get the MFA set up with the token and secret.

How to use Web Scripting App with 2FA
Once the scripts is tested with Web Scripting App, you can copy it and create the Secured Dashboard App with the same info.

2. Configure the Secured Dashboard execution
There are a few settings allow you to control how the scripts are executed. Secured Dashboard will execute the scripts on a dedicated instance, and then take a screenshot of the report according to your settings.

• Resolution: The default setting is 1080p - FHD(1920x1080) in landscape mode. You can choose other resolutions, even custom resolutions. Please note if you would like to display in portrait mode, you will need to choose custom resolutions and set the resolutions accordingly, e.g. 1080x1920.
• Full Page: If you selected full page, it will take the screenshot of the entire webpage, even if the webpage is scrollable.

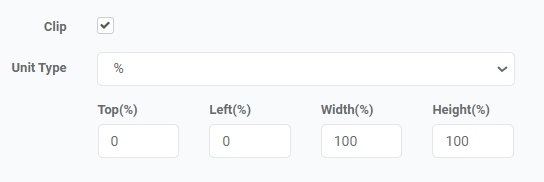

• Clip: This allow you to take screenshot of certain section of the webpage. You can set the starting point of the screenshot from the top left, and width and height of the screenshot.

• Delay: This allow you set when the screenshot is taken. Default is 30 seconds, meaning the screenshot will start 30s after the scripts executed. If your report data takes long time to load, you can set a proper value here to pass the loading.

After completing all the settings, you can assign it to the screens, the screenshots will update at the set interval.

Note: If your reporting systems have firewall rules or using CAPTCHA to block bots, you can contact us to get the IP address that you can used for whitelisting.

That's all!
