In this article, we'll create an Inbound Webhook DataSource in Designer, send data to it from your own app or automation, and show that data on your screens.
- What You'll Need
- How It Works
- Create an Inbound Webhook DataSource
- Send Data to Your Webhook
- Change or Reopen a Webhook
- Troubleshooting
- Related Articles
Most DataSources in Designer go out and fetch your data on a schedule. An Inbound Webhook works the other way round. Your own system sends data to a private URL the moment something happens, and your screens show it within seconds. You don't need a spreadsheet, a polling interval or a manual refresh.
This is the preferred option for people who want an immediate update. Simply set up a webhook that fires on your end, then any changes to your Data will refresh within OptiSigns and on your screens rapidly.
What You'll Need
- An OptiSigns Pro Plus or Enterprise plan. Inbound Webhooks are part of Dynamic Data Mapping.
- A design open in Designer.
- A system that can send an HTTP POST or PUT API request with a JSON body
How It Works
When you create an Inbound Webhook DataSource, Designer gives you a private Webhook URL. Anything that can send an HTTP POST request can use it: Zapier, Make, Shopify, a point-of-sale system, or a script you write yourself. Each request carries JSON, and that JSON becomes rows in the DataSource. You show those rows on screen with a Repeater, the same way you would with any other DataSource.
Each Inbound Webhook DataSource runs in one of two display modes. You choose the mode when you create the DataSource.
- State - Replace the whole value each time. Every request overwrites what was there before, and nothing expires on its own. Use it for things that have one current value, such as a KPI, a total, a menu, a roster or a scoreboard.
- Event - Append each row. Every request adds to the feed, and every row expires automatically after a set time. Use it for things that happen, such as new orders, alerts, check-ins or a "now serving" number.
IMPORTANT |
| Display mode is fixed once the DataSource exists. To use the other mode, create a new DataSource. |
Creating an Inbound Webhook DataSource
Open the DataSource Panel

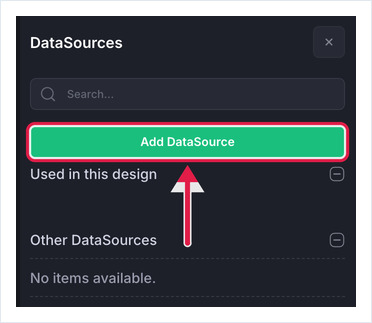

In Designer, click DataSource in the left-side menu to open the DataSources panel, then click Add DataSource.
Choose Inbound Webhook

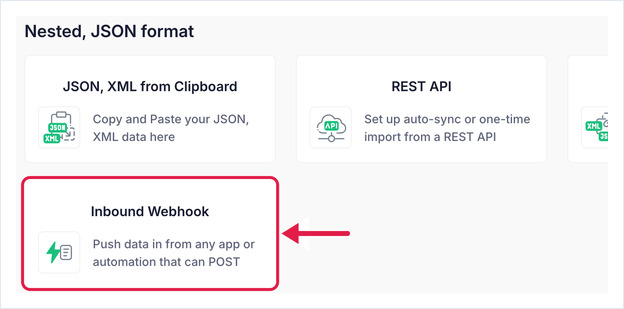

Under Nested, JSON format, choose the Inbound Webhook card ("Push data in from any app or automation that can POST").

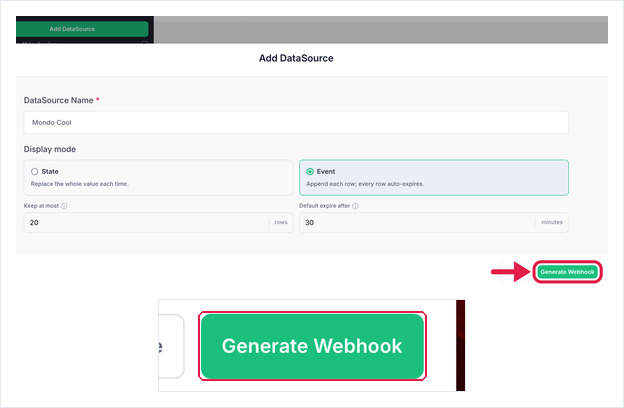

Name the DataSource and Pick a Display Mode
Enter a DataSource Name.
Under "Display Mode", choose State or Event.
If you chose Event, set how the feed behaves:
- Keep at most - The most rows the feed keeps, 20 by default. When a new row arrives and the feed is full, the oldest row is dropped. The limit is 200.
- Default expire after - How many minutes a row stays live before it expires, 30 by default. This can be anywhere from 1 minute to 24 hours. A single row can override it (see Set an expiry on individual rows).
Then, click Generate Webhook.
Copy your Webhook URL
Designer creates the DataSource and shows the Webhook URL (key included) and the Key. Copy it with the copy icon and paste it into the system that will send the data. The URL will look like this:
https://smallapp.optisigns.com/api/request-apis/dataSourceDatas/<DataSource ID>/webhook?key=<your key>
IMPORTANT |

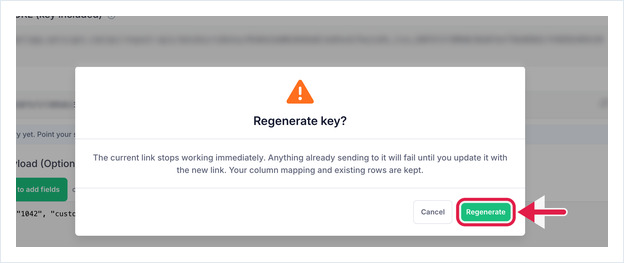

| Treat this URL like a password. Anyone who has it can send data to this DataSource. If it leaks, click the regenerate icon next to the Key and confirm Regenerate. The old link stops working immediately, and your column mapping and existing rows are kept. |
Detect your Payload (optional)

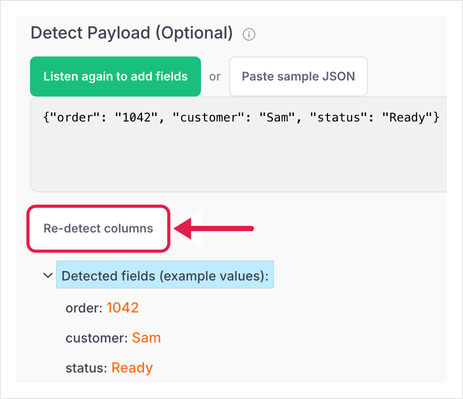

Designer needs to know which fields your data contains before you can place them on the canvas. Under Detect Payload (Optional), do one of these:
- Listen for a delivery - Click it, then send one real request from your system. Designer reads the fields from what arrives.
- Paste sample JSON - Click it, paste an example of your payload into the box, then click Detect columns.
Designer lists what it found under Detected fields (example values). You can run either option again later (Listen again to add fields or Re-detect columns) to pick up new fields. New fields are added to the ones Designer has already seen, so your existing mapping stays in place.
Click Save to finish.
Put the Data on your Design

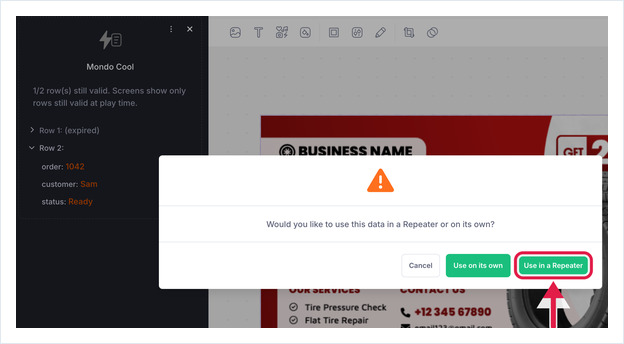

Drag a field from the DataSource card onto the canvas. Designer asks whether to use the data in a Repeater or on its own. Choose Use in a Repeater so the design creates one item per row. Use on its own places a single value instead.
Save the design and push it to your screens. For more on laying out repeated data, see How to Set Up Dynamic Data Mapping with OptiSync.
Send Data to Your Webhook
Send JSON to your Webhook URL with the Content-Type: application/json header. A screen picks up a change within about 20 seconds.
What POST and PUT Do
What each request does depends on the display mode:
-
Event mode
- POST - Adds one row. Send a list (a JSON array) to add several rows at once.
- PUT - Replaces every row with the rows you send.
- PUT with an empty body - Removes every row. Send {}, [] or {"data": []}.
-
State mode
- POST or PUT - Either one replaces the current values. Any field you leave out is cleared.
For example, this request adds one order to an Event feed:
curl -X POST "https://smallapp.optisigns.com/api/request-apis/dataSourceDatas/<DataSource ID>/webhook?key=<your key>" \
-H "Content-Type: application/json" \
-d '{"order": "1042", "customer": "Sam", "status": "Ready"}'
To add several rows in one request, send a JSON array:
[
{"order": "1042", "status": "Ready"},
{"order": "1043", "status": "Preparing"}
]
To replace every row with PUT, you can send an array like the one above, or wrap it as {"data": [ ... ]}.
| NOTE |
With POST, a body shaped {"data": [ ... ]} is treated as one row with a field called data. To send several rows with POST, send a plain array. |
Set an expiry on individual rows
In Event mode, each row expires after the DataSource's Default expire after time. To give one row its own lifetime, add __opti_ttl with a number of seconds:
{"alert": "Lane 3 closed", "__opti_ttl": 300}
This row expires after 5 minutes, whatever the default is. The shortest expiry is 60 seconds. __opti_ttl is used to work out the expiry and isn't stored as a column.

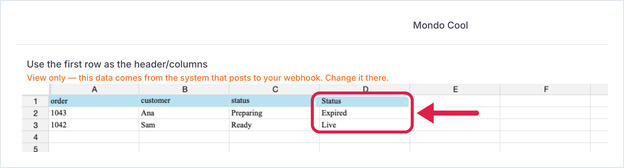

Expired rows stop showing on your screens. In Designer they stay on the DataSource card, marked (expired). To check which rows are live, open the DataSource's ⋮ menu and choose Edit Data. The Status column shows Live or Expired for each row. This view is read-only, because the data comes from your sender.
When a feed has no live rows left, your screens follow the DataSource's Empty Data Handling setting.
TIP |
Avoid naming your own fields with the __opti_ prefix. That prefix is reserved for OptiSigns, so fields that use it are not shown in Designer. |
Send the key in a header
The URL Designer gives you carries the key in the query string (?key=...). If your sender lets you set custom headers, you can remove ?key=... from the URL and send the key in an X-Webhook-Key header instead. Web servers and tools often log full URLs, so keeping the key out of the URL means it won't end up in those logs.
curl -X POST "https://smallapp.optisigns.com/api/request-apis/dataSourceDatas/<DataSource ID>/webhook" \
-H "X-Webhook-Key: <your key>" \
-H "Content-Type: application/json" \
-d '{"order": "1042", "status": "Ready"}'
Limits
Your webhook checks every request against these limits. They aren't shown in Designer.
- Rows - A feed holds up to 200 rows, or fewer if you set a lower Keep at most.
-
Request size in Event mode
- One row - Up to 64 KB per request.
- A list of rows, or any PUT - Up to 256 KB per request, with each row still up to 64 KB.
- Request size in State mode - Up to 256 KB per request.
- Rate - Up to 120 requests per minute for each webhook.
For scale, a typical e-commerce order notification is 10 to 40 KB, so one order fits comfortably in a single row.
A request over a limit is rejected as a whole, and nothing from it is saved. Rows are never cut off partway.
IMPORTANT |
| A payload that passes Detect columns or Listen for a delivery can still be too large to deliver. Check your real payload size against the limits above, especially for large records such as full e-commerce orders. |
Change or Reopen a Webhook

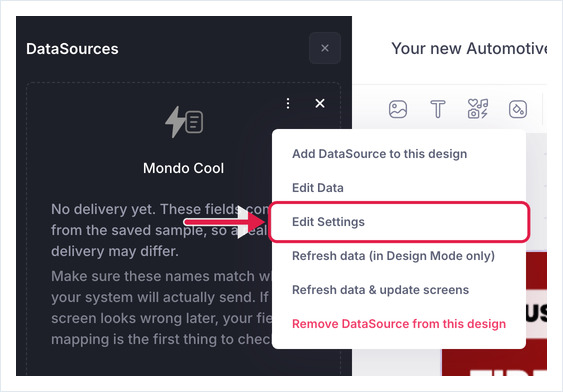

To see your Webhook URL again, change the name, or change Event settings, open the DataSources panel and click your DataSource to open its card. Click the ⋮ menu on the card and choose Edit Settings.
Troubleshooting
In this section, we'll address some of the more common issues you might run into when using Inbound Webhooks in Designer.
My system got a success response, but nothing changed in Designer.
Designer doesn't refresh its view of a DataSource on its own. Open the DataSource's ⋮ menu and choose Refresh data (in Design Mode only), or reload the page. Your screens update on their own.
The DataSource says "This feed is empty. Send a POST to this webhook URL to fill it."
Nothing has arrived yet, or the feed was cleared by a PUT with an empty body. Check that your sender is using the current Webhook URL.
Rows are listed in Designer but don't show on the screen.
The rows have expired. Check Default expire after and any __opti_ttl values you send. If a value like a menu or a KPI keeps disappearing, it was probably built in Event mode, where every row expires by design. Create a new DataSource in State mode for it.
I see duplicate rows.
When a sender retries a request, each retry adds a row. To prevent duplicates, send a unique X-Request-Id header with each request. Shopify webhooks are recognized automatically by their X-Shopify-Webhook-Id header.
My sender gets an error.
The status code will you why:
- 401 Unauthorized - The key is wrong, or it was regenerated. Copy the current URL from Edit Settings.
- 404 Not found - The DataSource ID in the URL is wrong, or the DataSource was deleted.
- 413 Payload too large - The request is over the size limit for its type. See Limits.
- 429 Too many requests - You sent more than 120 requests in a minute. Slow down, or send several rows in one request instead.
- 400 - The body isn't valid JSON, isn't a shape the webhook accepts, or has more rows than the feed can hold.
- 503 Inbound Webhook is temporarily disabled - The service is paused on our side. Try again later, and contact support if it continues.
