In this article, we'll walk you through setting up Grafana to display on your OptiSigns digital signs.
- What You'll Need
- Create a Service Account in Grafana
- Add a Grafana Connection in OptiSigns
- How OptiSigns Renders Your Dashboard
- Create a Grafana App in OptiSigns
- Deploying a Grafana App
-
Frequently Asked Questions
- The connection test says Grafana rejected this token. What's wrong?
- The connection test says it could not reach my Grafana URL. Is that a problem?
- My dashboard list is empty, or I can't find my dashboard. How can I make it appear?
- I entered my dashboard's link and OptiSigns won't accept it. Why?
- The connection test says there's no image renderer. What do I do?
- The connection test says embedding is disabled on my Grafana. How do I fix it?
- My screen says Dashboard unavailable. What does that mean?
- My screen is showing old data and says data may be stale. Why?
- My Grafana dashboard used to display fine, but stopped all of a sudden. What's wrong?
With the Grafana app, you can display a live Grafana dashboard on any OptiSigns screen.
Once set up, the dashboard renders automatically. It does not require a login on the screen, and it refreshes on a schedule you choose.
What You'll Need
- An OptiSigns account with a Pro Plus Plan or higher
- A Grafana instance, either Grafana Cloud or self-hosted
- Admin rights in Grafana, so you can create a service account
- A dashboard you want to display
- An OptiSigns-enabled device
- A screen, set up and paired with OptiSigns
Within Grafana, you'll also need these two values:
- Your Grafana URL
- A service-account token with the Viewer role
We will show how to find them in the article below.
| NOTE |
| The Integrations page is only available to team admins. If you are not a team admin, ask one to add the Grafana connection for you — you can still build the app yourself once the connection exists. |
Create a Service Account in Grafana
A service account is what OptiSigns uses to read your dashboard. It is a machine identity that belongs to your Grafana, separate from any person's login, so nobody's password ever reaches a screen.
The Viewer role is all OptiSigns needs. No need to give OptiSigns any more complex permissions.
Create the Service Account

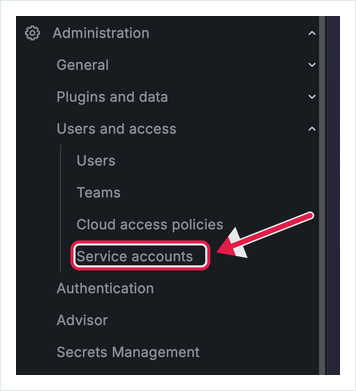

In Grafana, open Administration, then Users and access, then Service accounts.

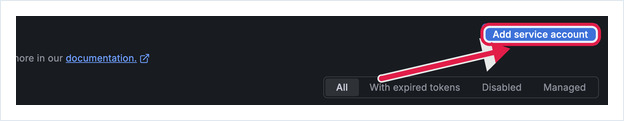

Click Add service account.

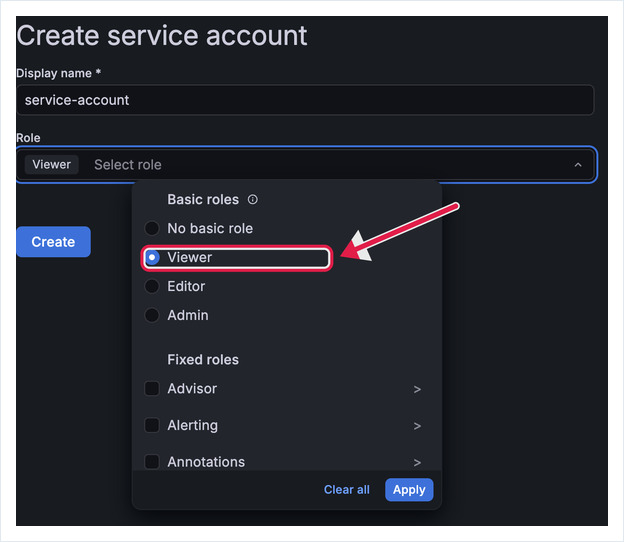

Give it a Display name you will recognize later, set Role to Viewer, and click Create.
Generate a Token

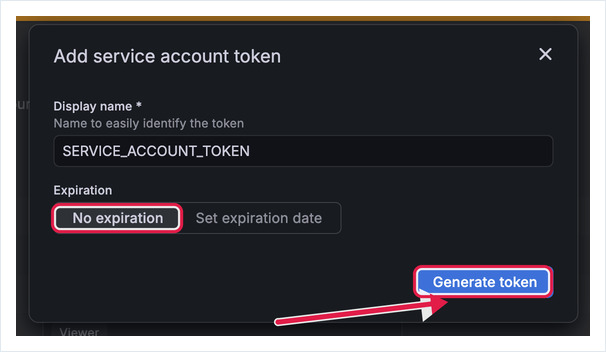

Open the service account you just created and click Add service account token.
Give the token a Display name. Leave No expiration selected, or set an expiration date if your security policy requires one. Then click Generate token.

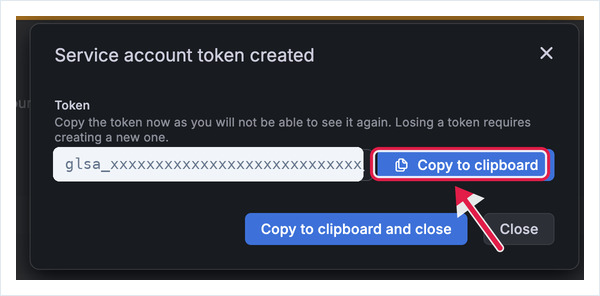

Copy the token and store it somewhere safe. You will paste it into OptiSigns in the next step.
IMPORTANT |
|
The token is shown only once. If you lose it, you cannot recover it — you will need to generate a new one and update your OptiSigns connection. If you set an expiration date, your screens will stop updating when the token expires. Put a reminder in your calendar to generate a new token and update the connection in OptiSigns before that date. |
Add a Grafana Connection in OptiSigns
Now we will give OptiSigns the two values you just collected.

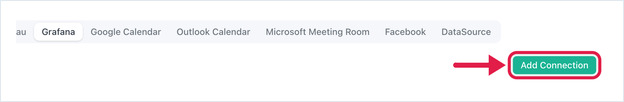

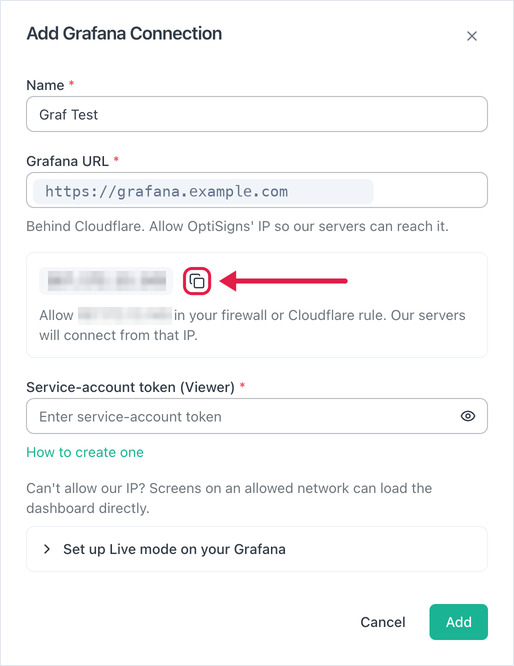

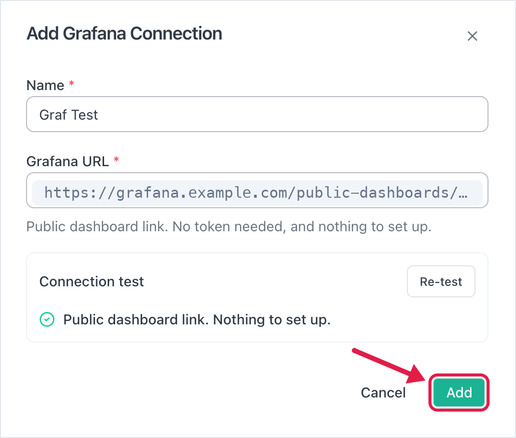

Go to Integrations under your main menu, then click the Grafana tab and click Add Connection.

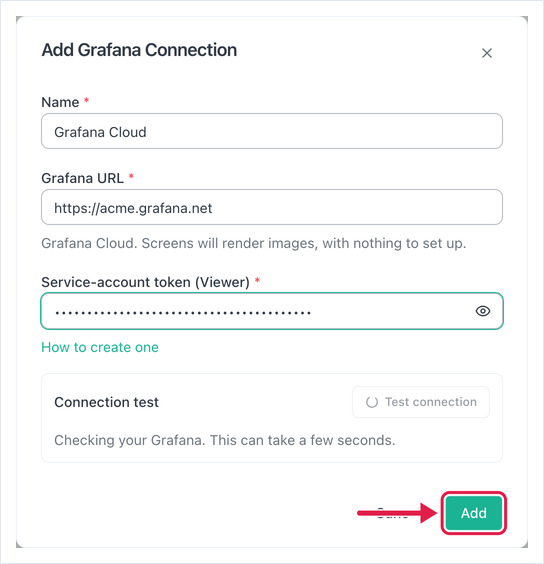

Fill in the form:
- Name — the name of the connection as displayed in OptiSigns. This will not display on your screen.
-
Grafana URL — your Grafana's base URL, for example
https://acme.grafana.net. Use the base URL only, not a link to a dashboard. - Service-account token (Viewer) — the token you generated in Grafana.
OptiSigns stores the token encrypted and uses it only on our servers. It is never sent to a screen.

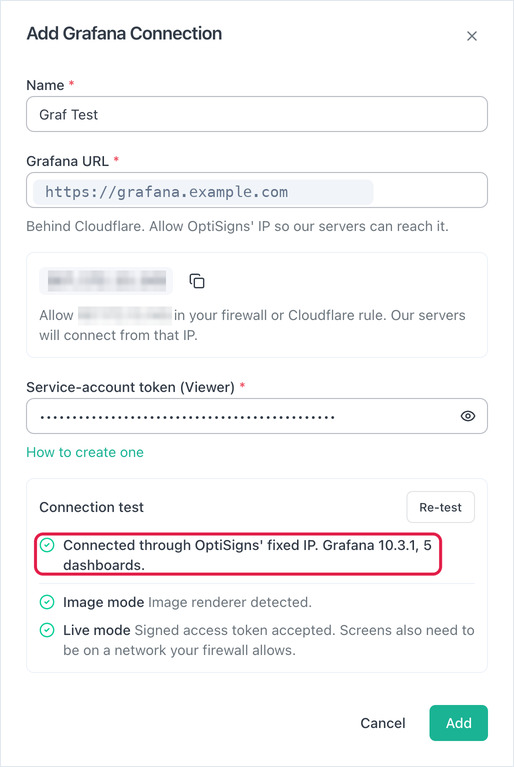

You can then hit Test Connection once all these fields are filled. You should receive a 200 notice (green) if the connection is successful. Click Add to save the connection.
NOTE |
| One connection is equal to one Grafana instance. If you have more than one, add a separate connection for each. |
How OptiSigns Renders Your Dashboard
OptiSigns has two ways to put a Grafana dashboard on a screen, and it picks the right one for you from the URL you entered. You do not need to choose.
- Grafana Cloud - We render the dashboard as an image, and the screen displays it. This is essentially a screenshot that is refreshed every few minutes. Any updates made to your dashboard will need to wait for a new screenshot to be pushed to your device.
- Self-Hosted - We render your dashboard live. As any changes are made, the screens automatically update.
If You Use Grafana Cloud
There is nothing else to set up. Grafana Cloud manages the image renderer for you. Skip ahead to Create a Grafana App in OptiSigns.
| NOTE |
| Grafana Cloud does not support Live mode. Grafana Cloud tells browsers not to embed its pages, so a screen cannot load it directly. Image mode is the supported path, and it is the one OptiSigns selects for you. |
If You Self-Host Grafana
Self-hosted instances default to Live mode, which needs a one-time change to your Grafana configuration.

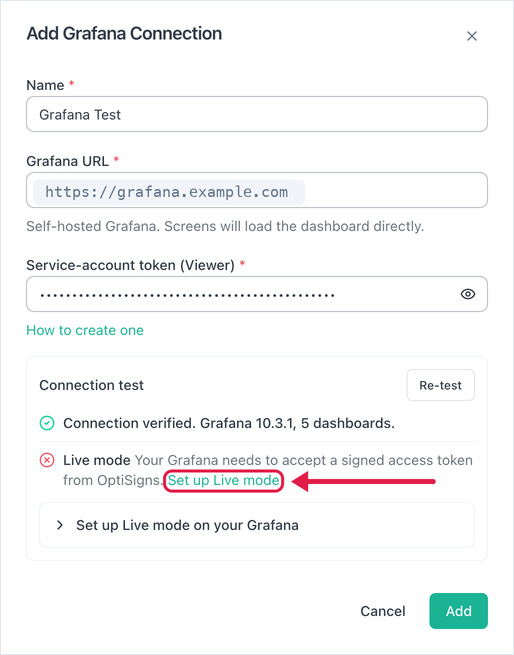

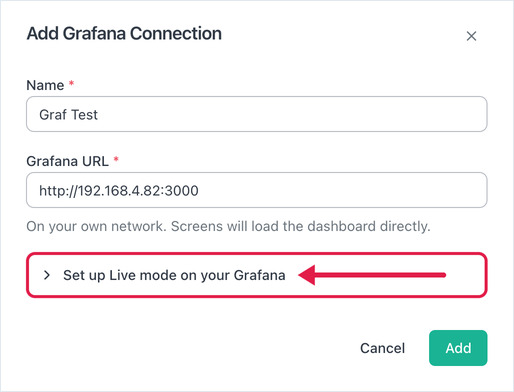

OptiSigns generates the exact configuration for your account. On the Integrations page, under your Grafana connection, find Set up Live mode on your Grafana. Pick the grafana.ini or Docker / Kubernetes tab to match how you run Grafana, click Copy, apply it to your Grafana, and restart. Then re-run the connection test.
It turns on two things:
- JWT authentication, so your Grafana accepts a signed token from OptiSigns instead of a password
- Embedding, so the dashboard can load inside a screen. Your own Grafana logins are unaffected.
IMPORTANT |
| Both halves are required. If embedding stays off, Grafana refuses to load in a screen and the connection test reports that embedding is disabled. |
If you would rather use Image mode on a self-hosted instance, you need Grafana's image renderer service installed and configured. Note that the bundled renderer plugin was removed in Grafana 13, so the standalone service is the only option on current versions. See Grafana's image rendering documentation. You can then switch the mode under Advanced on the app itself.
| NOTE |
| Some display options rely on Grafana hiding its own time picker and variable bar, which needs Grafana 11.3 or newer. On older versions those controls may still be visible on the screen. |
Create a Grafana App in OptiSigns
Now that the connection exists, create the asset that your screens will play.

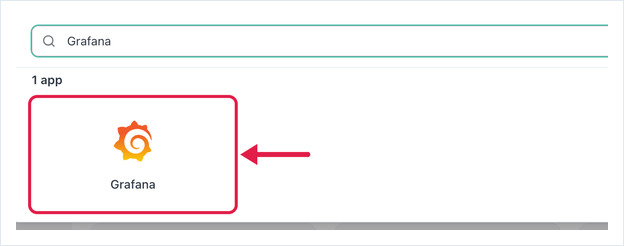

Open OptiSigns and go to Files/Assets → Apps → Grafana.
The app opens with a live preview on the right, so you can see what the screen will show as you fill in the form.

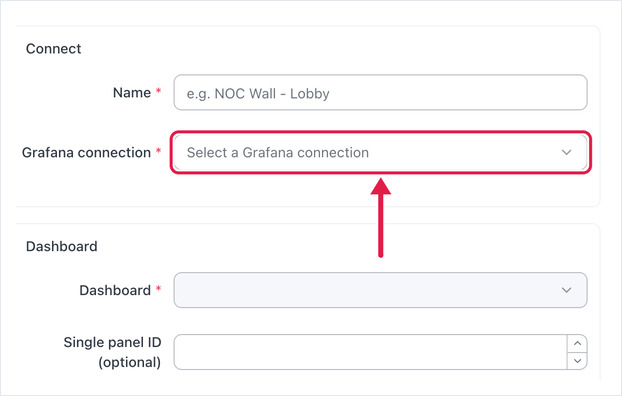

Under Connect:
- Name — the name of your Grafana app. This is for use in OptiSigns and will not display on your screen.
- Grafana connection — choose from any Grafana connections you've set up.
Under Dashboard:
- Dashboard — choose from a list of dashboards your service account can see on that connection.
- Single panel ID (optional) — leave this blank to show the whole dashboard. Enter a panel's ID to show just that one panel, filling the screen. You can find the ID in Grafana's URL when you view a single panel.

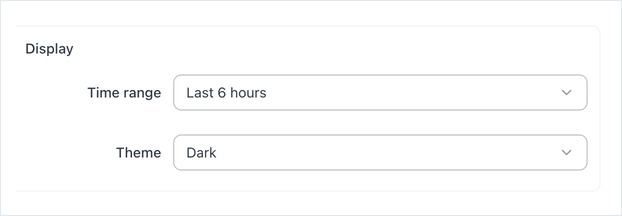

Display Settings
Open the Display section to control how the dashboard looks.
- Time range — how far back the dashboard looks: Last 1 hour, Last 6 hours, Last 24 hours, or Last 7 days. The range always ends at the current moment.
- Theme — Dark or Light. Dark is usually the better choice on a wall-mounted screen.
In Image mode you will also see:
- Refresh (seconds) — how often the screen fetches a new render, from 30 to 3600 seconds. The default is 300. More frequent updates put more load on your Grafana.
- Image quality — Standard or High (HiDPI). Use High for a 4K screen or when a panel's text looks soft.
- Show "as of" freshness stamp — adds a small timestamp so viewers can tell how current the data is.

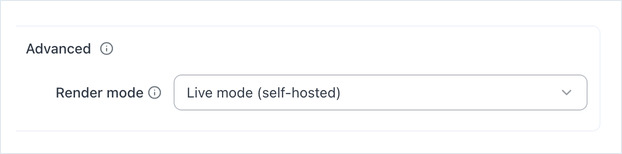

Advanced Settings
The Advanced section holds one setting most screens never need.
- Render mode — Image mode (works on Cloud) or Live mode (self-hosted). OptiSigns sets this from your connection. Only change it if the mode it chose does not work on a particular screen.
Click Save when you're done. The dialog stays open so you can keep adjusting; click Close when you're finished.
Deploying a Grafana App
You can deploy your new Grafana app as an individual asset, or as part of a Split Screen.
To get your new Grafana asset to a screen, go to the Screens tab, then click Edit on the screen you want to assign it to.

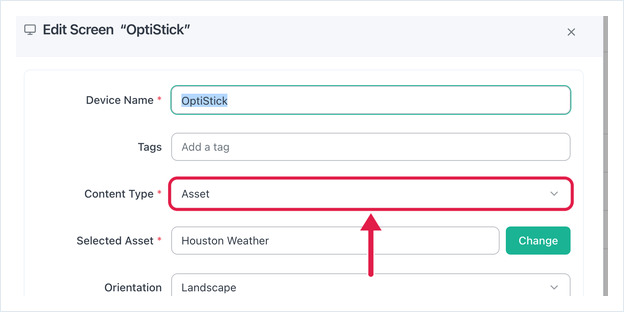

This brings up the Edit Screen dialog:
Here, select Asset under Content Type. If you already have an Asset, Playlist, or Schedule selected, you can hit Change.
Then select your created Grafana Asset.
Now hit Save. Your Grafana asset will now display on screen.
You can also deploy it as part of a split screen, allowing you to show other assets at the same time. See how in our Split Screen app article. It can also be displayed in a Playlist or Schedule.
How Updates Will Appear Onscreen
In Image mode, the screen fetches a fresh render every refresh interval, so a change you make in Grafana appears within one interval. If a render fails, the screen keeps showing the last good picture rather than going blank, and marks it data may be stale once it falls too far behind.
In Live mode, the dashboard is running on the screen itself, so it updates on whatever refresh your Grafana dashboard is set to.
Frequently Asked Questions
Here, we'll answer some frequently asked questions our customers have, and solve some common troubleshooting issues.
The connection test says Grafana rejected this token. What's wrong?
The token is expired, has been revoked, or belongs to a different Grafana than the URL you entered. Generate a new service-account token in Grafana and update the connection. Also check that the Grafana URL points at the same instance the service account lives in.
The connection test says it could not reach my Grafana URL. Is that a problem?
Not necessarily. It means our servers could not open your Grafana from the internet, which is normal for a self-hosted instance on a private network. Your screens may still be able to reach it on your own network, which is exactly what Live mode does. You can save the connection and test again later.
If you expected it to be reachable, check the URL for typos, make sure it is "https:", and confirm the certificate is issued by a public certificate authority. A self-signed certificate will fail.
My dashboard list is empty, or I can't find my dashboard. How can I make it appear?
The service account can sign in but cannot see any dashboards. In Grafana, check that the service account's role is Viewer and that it has permission to view the folder the dashboard lives in. Then reopen the picker in OptiSigns.
Also make sure the connection you're using matches the Grafana instance where the dashboard lives.

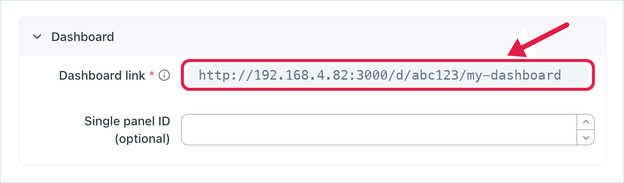

I entered my dashboard's link and OptiSigns won't accept it. Why?
The Grafana URL field takes the base URL of your Grafana — https://acme.grafana.net — not a link to a particular dashboard. You choose the dashboard separately, from the Dashboard dropdown on the app. Remove everything after the host name and try again.
The connection test says there's no image renderer. What do I do?
Image mode renders through Grafana's image-renderer service, and your self-hosted Grafana doesn't have one configured. Install and configure the image renderer service. Note the bundled renderer plugin was removed in Grafana 13, so the standalone service is the only option on current versions.
Alternatively, switch Render mode to Live under Advanced on the app, which needs no renderer.
The connection test says embedding is disabled on my Grafana. How do I fix it?
Your Grafana is telling browsers not to load it inside another page, so a screen cannot display it in Live mode. Turn embedding on in your Grafana configuration — it is part of the block under Set up Live mode on your Grafana on the Integrations page — then restart Grafana and re-run the test.
If your Grafana also sends a Content-Security-Policy, its frame-ancestors setting has to allow embedding too.
My screen says Dashboard unavailable. What does that mean?
The screen could not load your Grafana. The usual causes are:
- Your Grafana URL is http while the player runs over https. Browsers block that, and it can only be fixed by serving Grafana over https.
- The device cannot reach your Grafana. It is likely down, DNS doesn't resolve, or the screen's network blocks it.
- Live mode is configured but your Grafana is not yet accepting OptiSigns' signed token. Re-run the connection test to confirm.
My screen is showing old data and says data may be stale. Why?
OptiSigns could not get a fresh render from Grafana, so it is showing the last good picture rather than a blank screen. Check that Grafana is up and that the service-account token has not expired or been revoked, then re-run the connection test.
My Grafana dashboard used to display fine, but stopped all of a sudden. What's wrong?
Usually this is an expired or revoked service-account token. If you set an expiration date when you created it, check whether that date has passed. Generate a new token in Grafana and update your OptiSigns connection.
That’s all!
