Handle OAuth Authentication using API Gateway Pre-request Configuration

In this article, we will explain how to set up a Pre-request to retrieve an OAuth 2.0 access token for connecting to an API using an API Gateway.

OptiSigns API Gateway allows for OAuth authentication via Pre-request. This gives users the capability to consume API that requires OAuth authentication or similar.

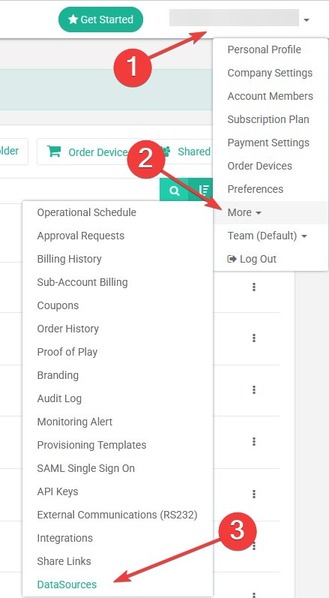

To get started, you'll need to set up an API request. Hover over Account Name → More → Click DataSources:

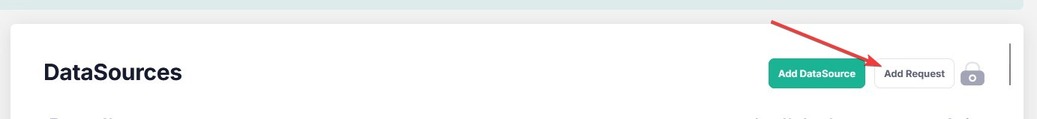

From there, hit Add Request.

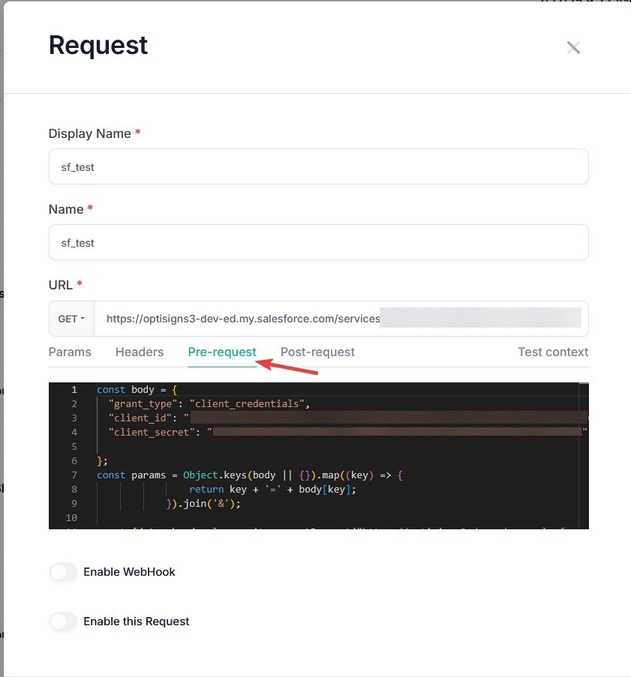

Create a GET Request and input your API endpoint, then click Pre-request:

Within the Pre-request field, input the following code:

const body = {
  "grant_type": "client_credentials",
  "client_id": "<CLIENT_ID>",
  "client_secret": "<CLIENT_SECRET>"

};
const params = Object.keys(body || {}).map((key) => {
        return key + '=' + body[key];
      }).join('&');

const {data, headers} = await os.postRequest("<OAUTH_AUTHENTICATION_URL>", params,{headers: {'content-type': 'application/x-www-form-urlencoded'}});
const token = 'Bearer' + data.access_token;
os.context.set("request.headers.authorization", token);

Notes:

• "grant_type": Use "client_credentials" ., because "client_credentials" is the grant type in OAuth for server-side integration without user interaction.
• <CLIENT_ID> and <CLIENT_SECRET> refers to the user's code for the API being accessed, this will need to be provided by the user.
• <OAUTH_AUTHENTICATION_URL> refers to the URL the access token is being retrieved from. This URL will need to be provided by the user.

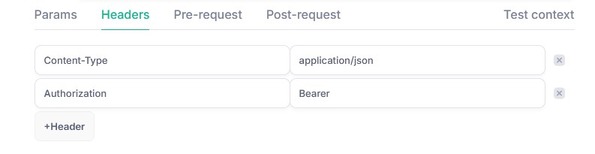

Now configure the Header:

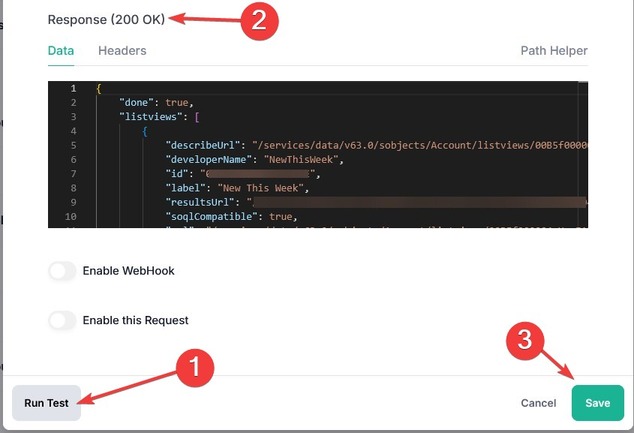

With this and the rest of the required fields filled out, you've properly configured your Pre-request. Hitting Run Test should return a 200 OK Response.

If so, hit Save to finish your API Request.

That's all!
