How to set up Digital Signs with OptiSigns and Amazon Fire TV

At price of $39.99, Amazon Fire TV Stick is one of the most cost efficient way to set up Digital Signs.

In this guide we will walk you through end to end process to set up and remotely manage your screens with Amazon Fire TV and OptiSigns Digital Signage.



Here are the high level steps:

1) Set up Amazon Fire TV Stick

2) Download OptiSigns Digital Signage from Amazon App Store

3) Using OptiSigns's web portal to assign content and remotely manage your screens

So let's dive in!



1) Set up Amazon Fire TV Stick

Plug in Fire TV and connect to Power. When connecting power it's temping to use the USB of the TV to power the Fire TV for convenience, but Fire TV consume a lot more power than TV's USB can supply, so it always best to use the power adapter and cable come with the Fire TV.




Power on the Fire TV and follow on screen instruction to connect to Wifi and register the device with your Amazon account.

Note that Amazon Fire TV requires internet to work.



2) Download & Set up OptiSigns Digital Signage from Amazon App Store

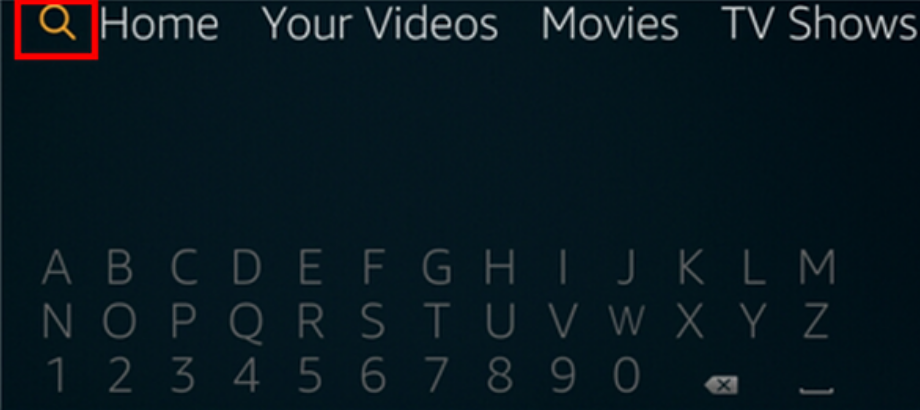

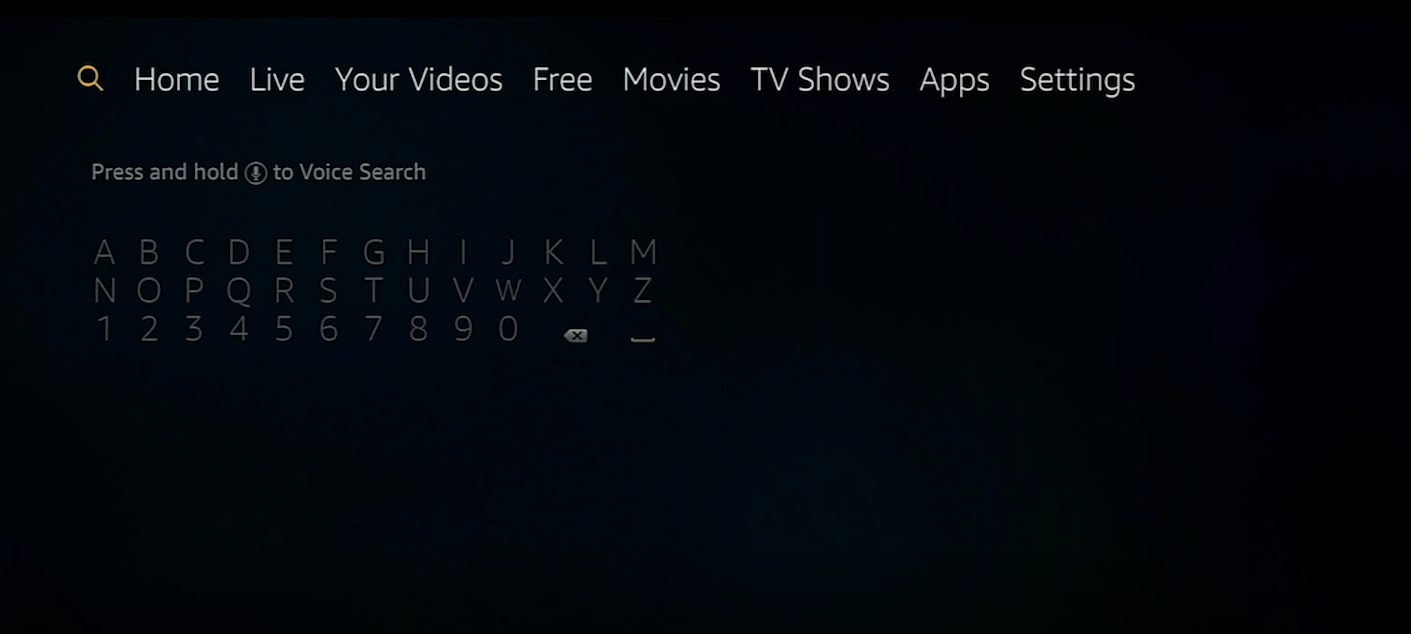

Press the search icon on the Fire TV home screen,

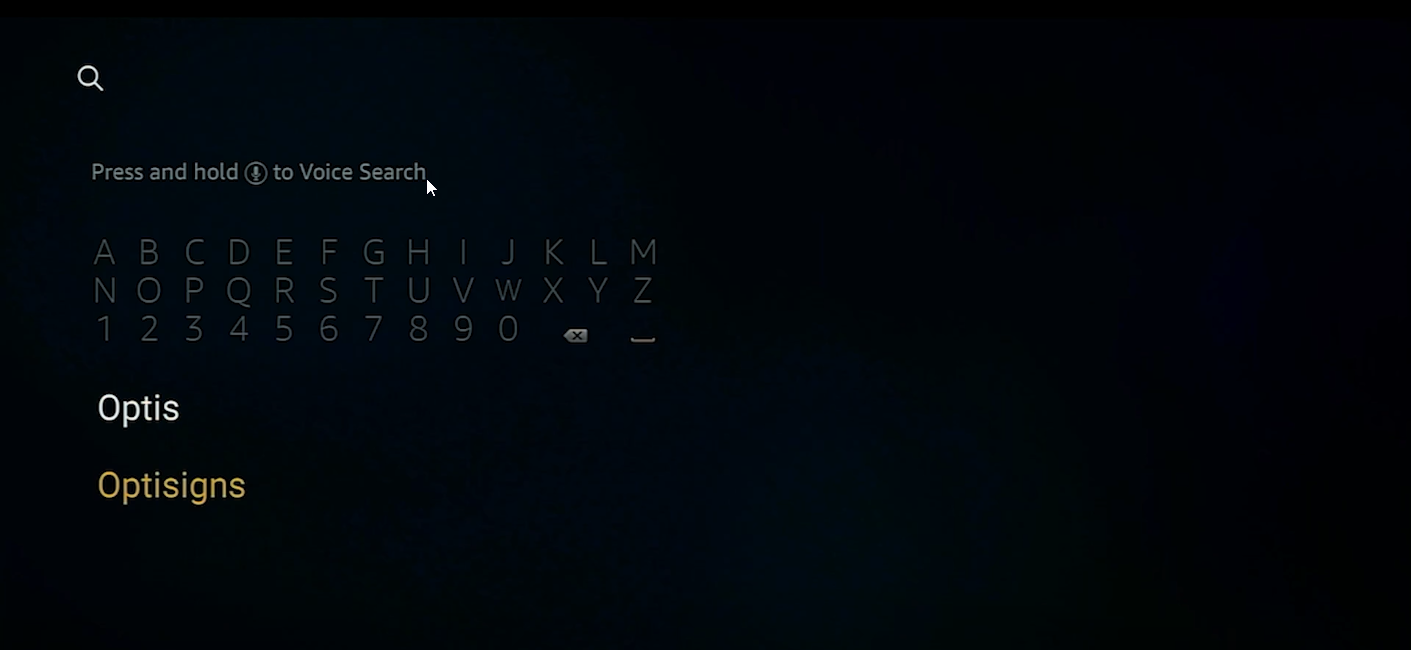

Type in "optisigns".
Fire TV Search could be tricky to use, and search as you type some times does not work.

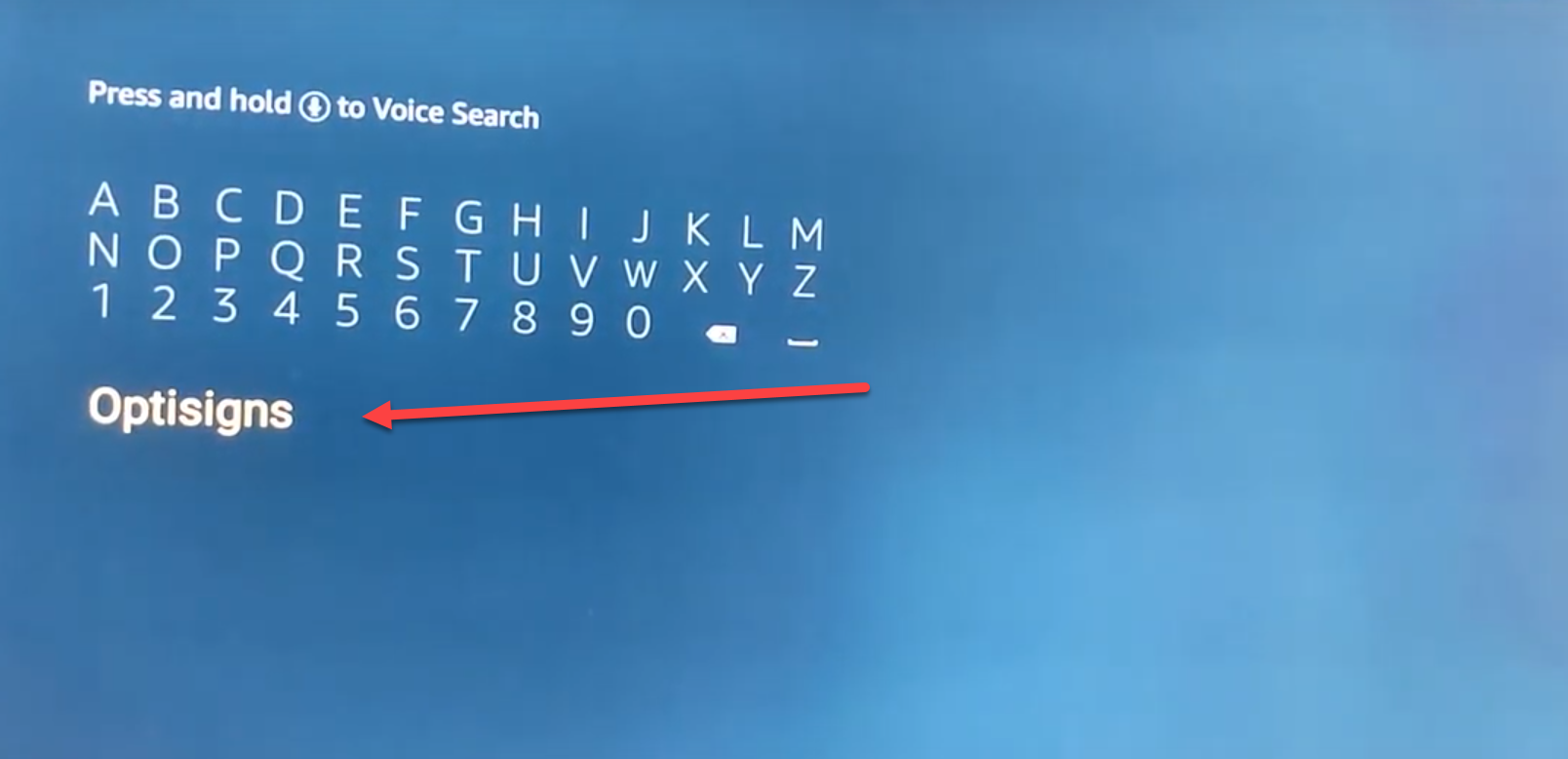

After you typed "optisigns", be sure to press down button till the "optisigns" text is highlighted and then click on it. (If you still need help see this video)

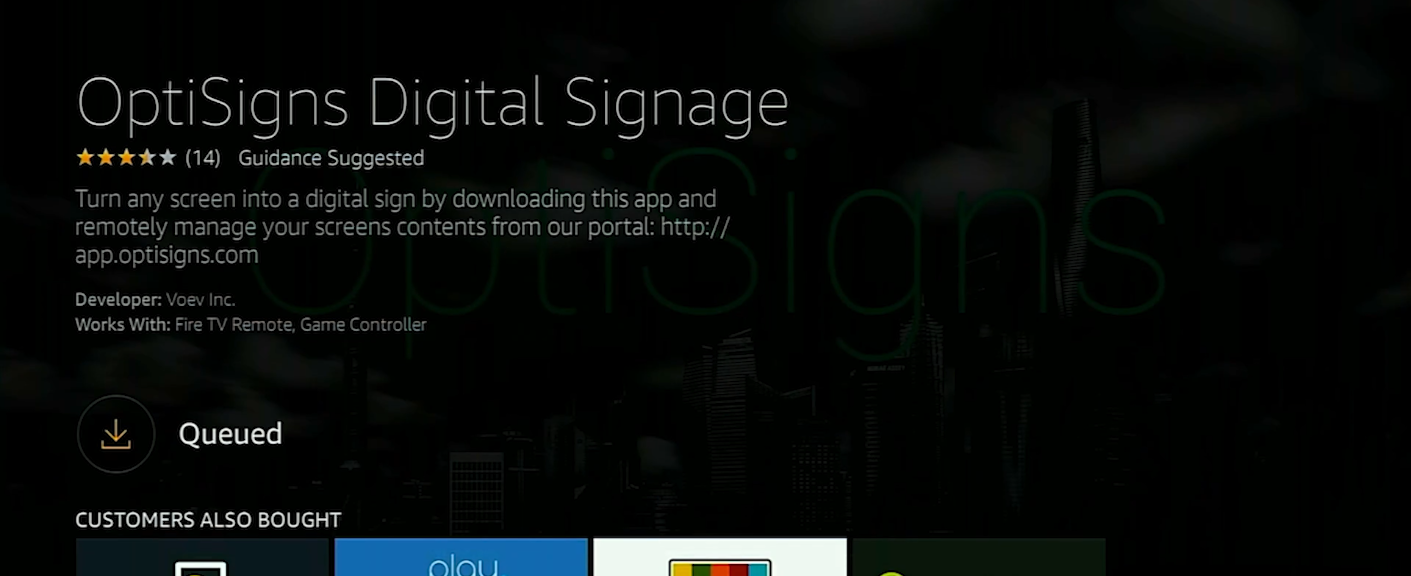

Click on the OptiSigns app icon




Click Download




Once the app is installed, launch it.



The app will ask if you want to automatically start when device start up. It recommended to select yes, unless you want to launch the app yourself every time manually.

You then will see this pairing screen:




Go to our website: https://app.optisigns.com

If you don't have an account already, create one, or you can also log in with Google or Facebook account.






Once you logged in Click "Add screen" button




In this pop up, type in the Pair Code showing up on your Fire TV screen. Then click Pair




The Fire TV screen will change to:




Now you are ready to upload and assign content.



3) Using OptiSigns's web portal to assign content and remotely manage your screens



Upload video/image to your account

Log on to your account. Click File/Assets

Click Upload Files



In this pop up, click to browse the file or drag and drop your files here.




2) Create a Playlist:

Go to Playlist Tab: Click Create Playlist A "New Playlist" will appear at the bottom on the screen. Click on it.

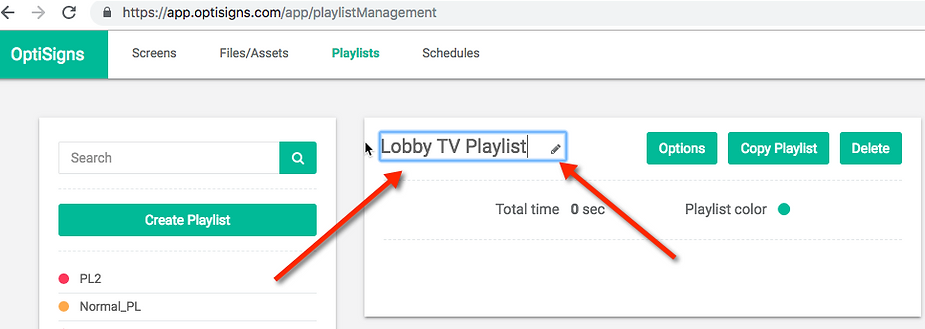

Click on the pencil button to change Playlist name.






Change it to something meaningful for you. In this case we will name it "Lobby TV Playlist"

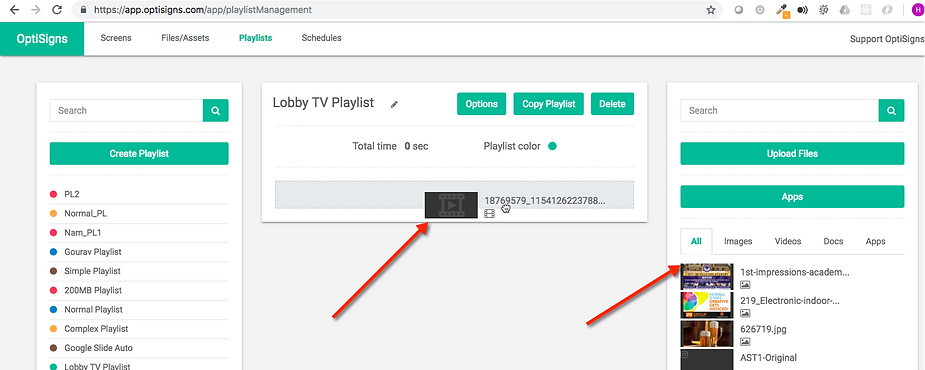

Drag and drop Video/Images that you uploaded to the playlist.



When you done, it should look something like below

You can click on the pencil button next to the item duration like below to change the duration of the item on the playlist.

3) Assign the playlist to your screen: Go to the Screen tab.

Click "Edit" button on the screen you want to change.

Click the Type drop down list and select Playlist.



Click the Selected Playlist drop-down and select the playlist you've created. In this case we select "Lobby TV Playlist"

Click Save



The Screen will be updated.

If you want to change the playlist, add, remove Video/Image, change duration, etc.

You can go back to Playlist tab and make the change to the playlist.

The device will update automatically.

You can also start using Apps like Google Slides or set up Schedule for your contents.



If you have feedback on how to make the how-to guides better, please let us know at: support@optisigns.com
